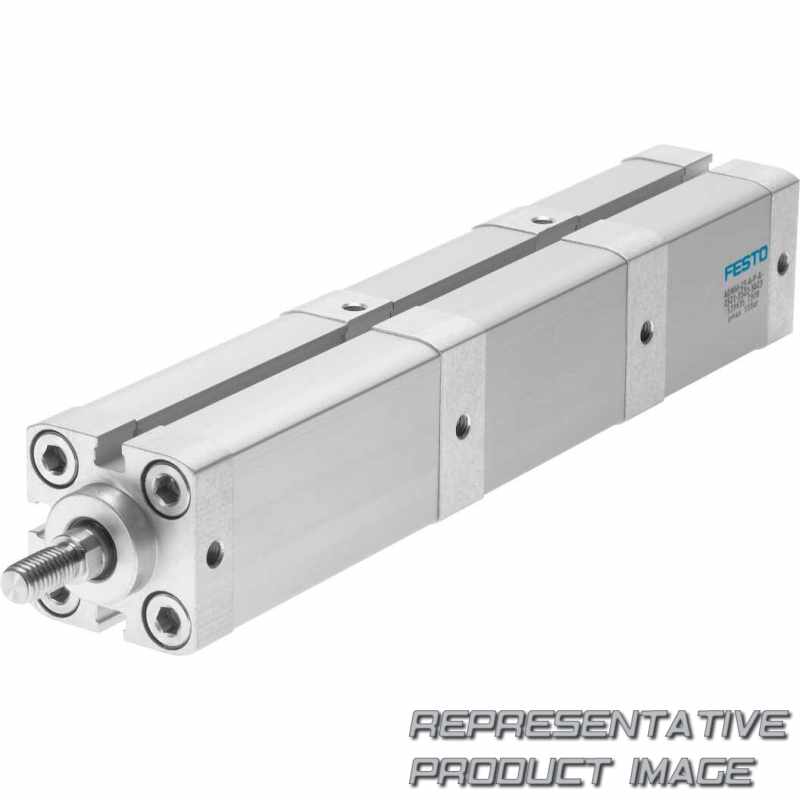

FESTO ADNM
31 Produkte
Entdecken Sie alle verfügbaren Konfigurationen für die Produktserie FESTO ADNM – Multi-position cylinder, double-acting, standard hole pattern. Finden Sie das passende Produkt durch Filtern mit Piston diameter [mm], Piston rod thread type, Position Z, Z2 - 2nd position mm, Z3 - 3rd position, Piston rod thread extension, Custom thread, Temperature resistance und Captive rating plate.
ADNM Typcodes
| Serie | Katalognummernformat | Beschreibung |
|---|---|---|
| ADNM | ADNM- - -P-A- Z1- Z2 | Multi-position cylinder, double-acting, standard hole pattern |
Typcode zur Katalognummer ADNM,
ADNM- - -P-A- Z1- Z2
| 001 | Series |
|---|---|
| ADNM | Multi-position cylinder, double-acting, standard hole pattern |
| 002 | Piston diameter [mm] |
| 25 | 25 |
| 40 | 40 |
| 63 | 63 |
| 100 | 100 |
| 003 | Piston rod thread type |
| A | Male thread |
| I | Female thread |
| 004 | Cushioning |
| P | Elastic cushioning rings/plates on both sides |
| 005 | Position sensing |
| A | For proximity sensor |
| 006 | Position Z |
| ...Z1 | 1 ... 400 mm |
| 007 | Z2 - 2nd position mm |
| ...Z2 | 1 ... 1000 mm |
| 008 | Z3 - 3rd position |
| None | |
| ...Z3 | 1 ... 1000 mm |
| 009 | Z4 - 4th position |
| None | |
| ...Z4 | 1 ... 1000 mm |
| 010 | Z5 - 5th position |
| None |
| ...Z5 | 1 ... 1000 mm |
| 011 | Piston rod thread extension |
|---|---|
| None | |
| ...K2 | 1 ... 30 mm |
| 012 | Custom thread |
| None | |
| “M5”K5 | M5 |
| “M8”K5 | M8 |
| “M10”K5 | M10 |
| “M10x- 1,25”K5 | M10x1.25 |
| “M12”K5 | M12 |
| “M12 x1,25”K5 | M12 x1.25 |
| “M16”K5 | M16 |
| “M16x- 1,5”K5 | M16x1.5 |
| “M20”K5 | M20 |
| 013 | Piston rod extension |
| None | |
| ...K8 | 1 ... 500 mm |
| 014 | Temperature resistance |
| Standard | |
| S6 | Heat-resistant seals max. 120 °C |
| 015 | Captive rating plate |
| Rating plate, glued | |
| TL | Laser etched rating plate |
