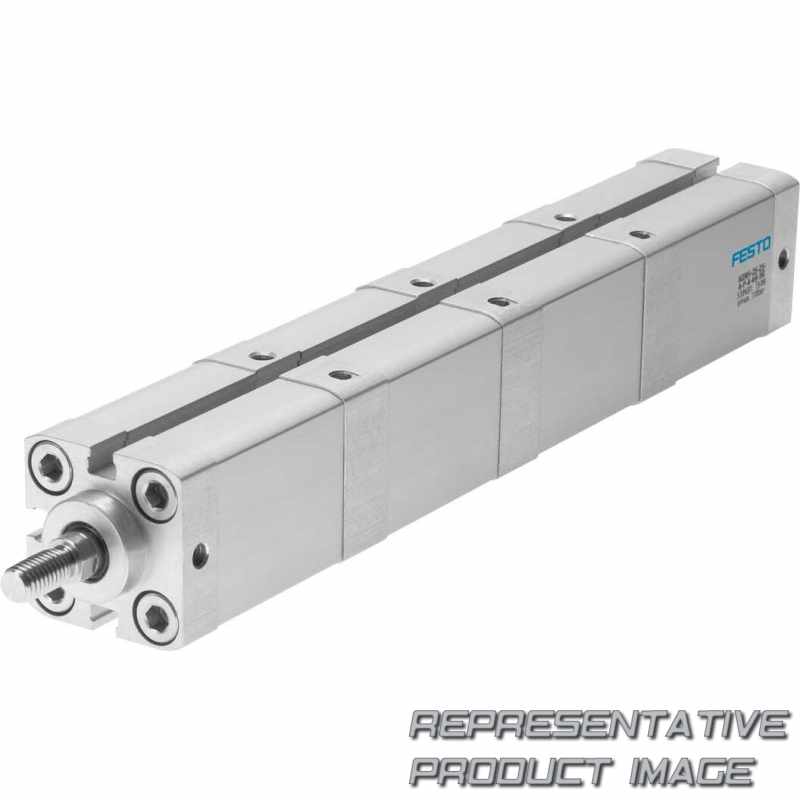

FESTO ADNH
37 Produkte
Entdecken Sie alle verfügbaren Konfigurationen für die Produktserie FESTO ADNH – High-force cylinder, double-acting, based on ISO 21287. Finden Sie das passende Produkt durch Filtern mit Piston diameter [mm], Stroke [mm], Thread type, Number of cylinders und Piston rod extension.
ADNH Typcodes
| Serie | Katalognummernformat | Beschreibung |
|---|---|---|
| ADNH | ADNH- - - -P-A- | High-force cylinder, double-acting, based on ISO 21287 |
Typcode zur Katalognummer ADNH,
ADNH- - - -P-A-
| 001 | Series |
|---|---|
| ADNH | High-force cylinder, double-acting, based on ISO 21287 |
| 002 | Piston diameter [mm] |
| 25 | 25 |
| 40 | 40 |
| 63 | 63 |
| 100 | 100 |
| 003 | Stroke [mm] |
| ... | 5 ... 150 |
| 004 | Thread type |
| I | Female thread |
| A | Male thread |
| 005 | Cushioning |
| P | Elastic cushioning rings/plates on both sides |
| 006 | Position sensing |
| A | For proximity sensor |
| 007 | Number of cylinders |
| 2N | 2 cylinders for twice the force |
| 3N | 3 cylinders for three times the force |
| 4N | 4 cylinders for four times the force |
| 008 | Piston rod thread extension |
| None |
| ...K2 | 1 ... 30 mm |
| 009 | Custom thread |
|---|---|
| None | |
| “M5”K5 | M5 |
| “M8”K5 | M8 |
| “M10”K5 | M10 |
| “M10x1,25”K5 | M10x1.25 |
| “M12”K5 | M12 |
| “M12 x1,25”K5 | M12 x1.25 |
| “M16”K5 | M16 |
| “M16x1,5”K5 | M16x1.5 |
| “M20”K5 | M20 |
| 010 | Piston rod extension |
| None | |
| ...K8 | 1 ... 150 mm |
| 011 | Temperature resistance |
| Standard | |
| S6 | Heat-resistant seals max. 120 °C |
| 012 | Captive rating plate |
| Rating plate, glued | |
| TL | Laser etched rating plate |
