FESTO ADNGF
282 Produkte

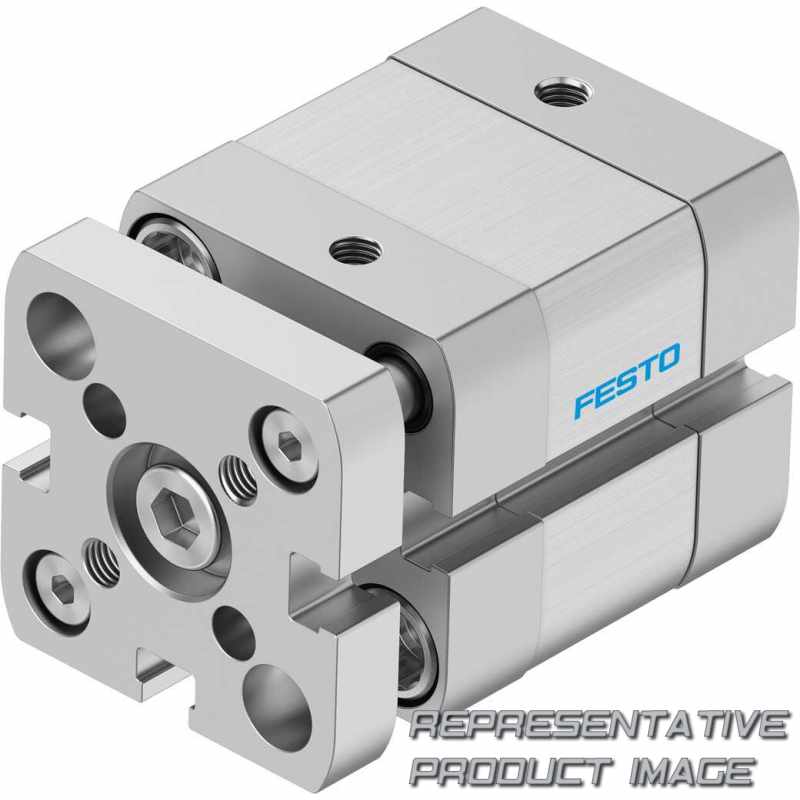

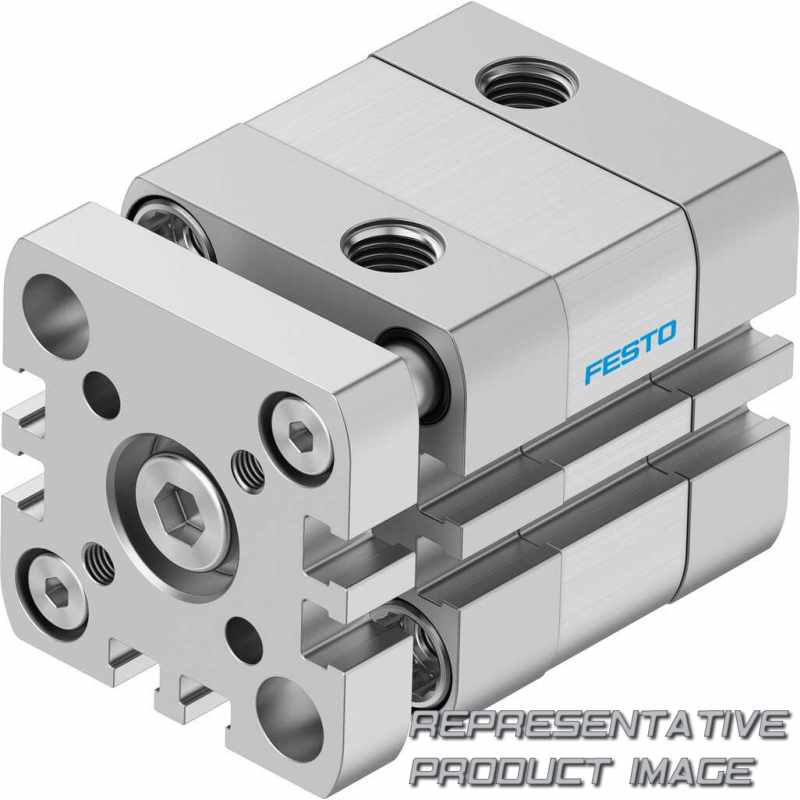

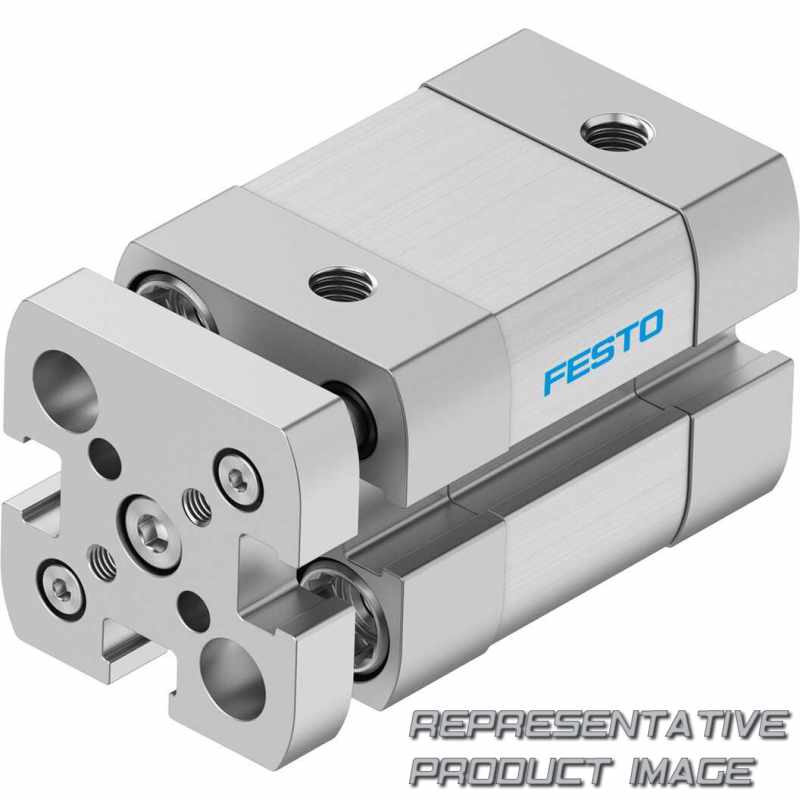

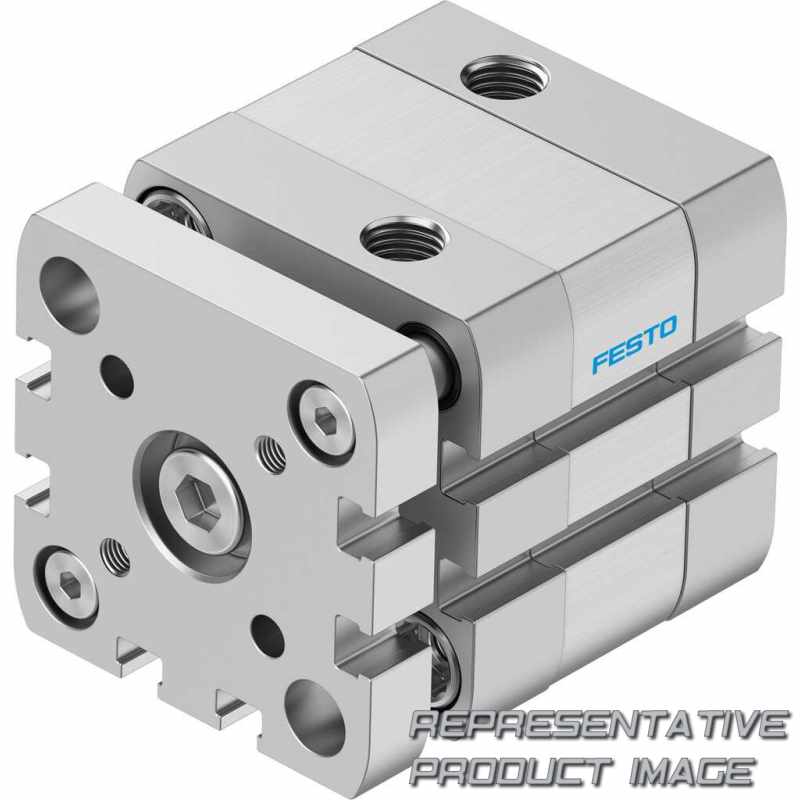

Entdecken Sie alle verfügbaren Konfigurationen für die Produktserie FESTO ADNGF – Compact cylinder, double-acting, standard hole pattern. Finden Sie das passende Produkt durch Filtern mit Piston diameter [mm], Stroke [mm], Dämpfung, Piston rod type, Temperature range und Captive rating plate.
ADNGF Typcodes
| Serie | Katalognummernformat | Beschreibung |
|---|---|---|
| ADNGF | ADNGF- - - -A | Compact cylinder, double-acting, standard hole pattern |
Typcode zur Katalognummer ADNGF,
ADNGF- - - -A
| 001 | Series |
|---|---|
| ADNGF | Compact cylinder, double-acting, standard hole pattern |
| 002 | Piston diameter [mm] |
| 12 | 12 |
| 16 | 16 |
| 20 | 20 |
| 25 | 25 |
| 32 | 32 |
| 40 | 40 |
| 50 | 50 |
| 63 | 63 |
| 80 | 80 |
| 100 | 100 |
| 003 | Stroke [mm] |
| ... | 1 ... 400 |
| 004 | Cushioning |
|---|---|
| P | Elastic cushioning rings/plates on both sides |
| PPS | Pneumatic cushioning, self-adjusting at both ends |
| 005 | Position sensing |
| A | For proximity sensor |
| 006 | Piston rod type |
| At one end | |
| S2 | Through piston rod |
| 007 | Temperature range |
| Standard | |
| S6 | Heat-resistant seals max. 120 °C |
| 008 | Captive rating plate |
| Rating plate, glued | |
| TL | Laser etched rating plate |
