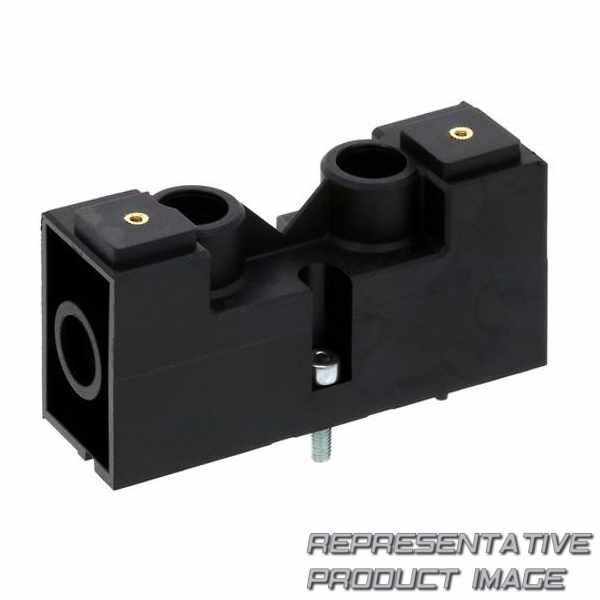

AVENTICS 8985121492

Name: 8985121492 AVENTICS
Brand: AVENTICS
SKU: 754469-de-eur
Price: 17.36 EUR
Availability: InStock

CD01-ND4

17,36 €

1 Stk. mit 1 bis 3 Tagen Lieferzeit nach United States

Technische Daten

max. Druck	16 bar
Dichtung	acrylonitrile butadiene rubber

Gewicht	88g

Typ		manifold strip
Standards		iso 15407-1
working pressure max		16 bar
max. ambient temperature		50 °c
max. medium temperature		50 °c
Max. number of valve positions		1
mounting screw		with hexagon socket
Gewicht		0.088 kg
seal material		acrylonitrile butadiene rubber

frame size		26 mm
working pressure min.		-0.95 bar
min. ambient temperature		-15 °c
min. medium temperature		-15 °c
Medium		compressed air
Rastermaß		27 mm
tightening torque for mounting screws		2.5 nm
Material base plate		polyamide fiber-glass reinforced
