| seal material | acrylonitrile butadiene rubber | ||
| tightening torque for mounting screws | 4 nm | ||
| Rastermaß | 27 mm | ||
| Medium | compressed air | ||
| min. medium temperature | -25 °c | ||
| min. ambient temperature | -25 °c | ||
| working pressure min. | -0.95 bar | ||
| frame size | 26 mm | ||
| exhaust (3,5) | with directional exhaust (3/5) | ||
| compressed air connection 2 / 4 | Ø 6x1 | ||

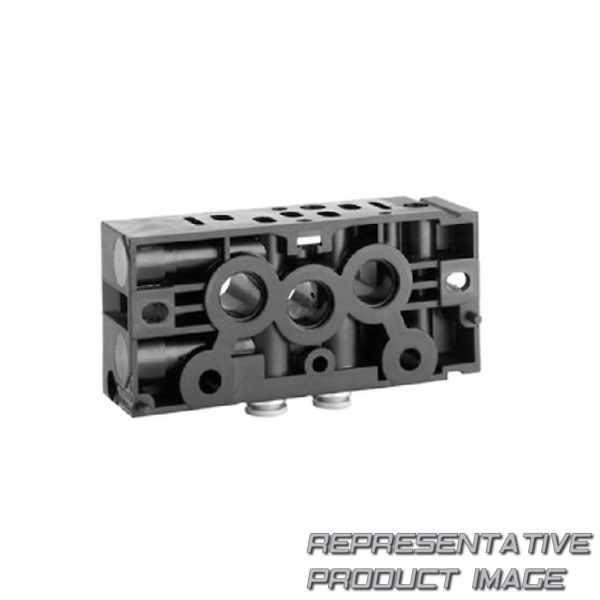

| Typ | base plate |
| Material base plate | polyamide fiber-glass reinforced | ||
| mounting screw | with hexagon socket | ||
| Max. number of valve positions | 1 | ||
| max. medium temperature | 70 °c | ||
| max. ambient temperature | 70 °c | ||
| working pressure max | 16 bar | ||
| Standards | iso 15407-1 | ||
| pilot control exhaust | with collective pilot air exhaust | ||
| exhaust type | ports separated | ||
| direction of pneumatic port (2,4) | down |
