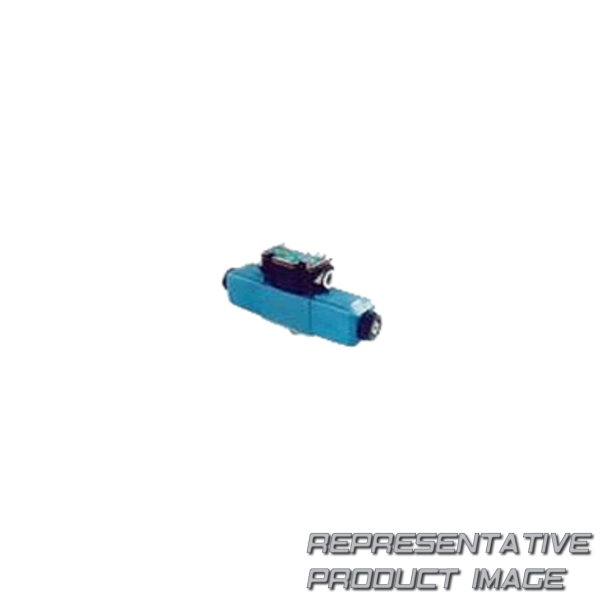

| industrial valves | dg4v 3 0c m u p7 60 | ||
| valve type | dg4v : (dg4v) sol. operated sub plate mounted dcv, 350 bar at ports a, b & p | ||
| performance | (0) high performance | ||
| spring arrangement | c : (c) spring centered. double end. | ||
| Handhilfsbetätigung | (0) plain override in solenoid ends only | ||
| spool monitoring switch | (0) no spool position monitoring switch | ||
| solenoid indicator light | (0) no solenoid indicator light | ||
| tank port rating | 7 : (7) 210 bar (3000 psi) for dc high performance models |
| Seal Type | (0) viton | ||
| interface | -3 : (3) iso/din 4401-ab-03, size 3 interface | ||
| spool type | -0 : (0) open center (all ports) | ||
| build orientation | (0) standard build | ||
| solenoid identification | -m : (m) flag with standard build as per ansi b93 9 | ||
| coil type | -u : (u) iso4400, din43650 connector | ||
| diode | (0) no diode | ||
| design code | -60 : (60) design number |
