| Medium | compressed air | ||
| weight +10 mm stroke | 0.036 kg | ||
| cushioning energy | 15 j | ||
| Kolbenstangengewinde | m16x1,5 | ||
| working pressure max | 10 bar | ||
| max. ambient temperature | 80 °c | ||
| extracting piston force | 1235 n | ||
| pressure for determining piston forces | 6,3 bar | ||

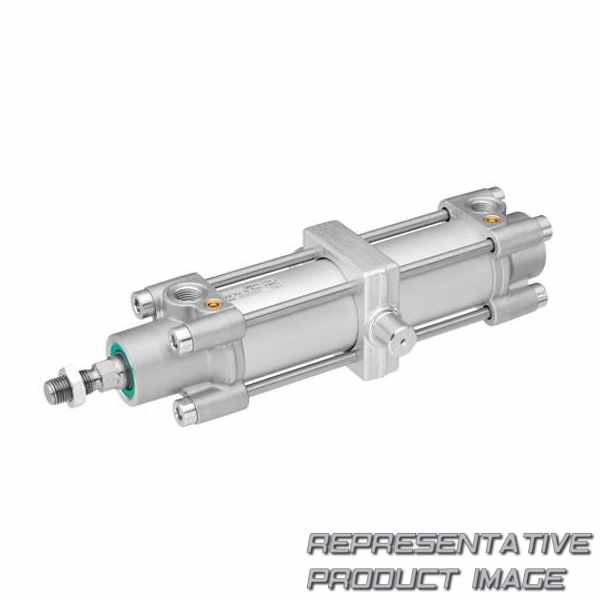

| cylinder special features | with trunnion mounting | ||
| environmental requirements | industry standard, atex optional | ||
| Dämpfung | pneumatic adjustable cushioning | ||
| Hub | 160 mm | ||
| Standards | iso 15552 |
| stroke max. | 2100 mm | ||
| weight 0 mm stroke | 1.84 kg | ||
| Dämpfungslänge | 17 mm | ||
| Anschlüsse | g 1/4 | ||
| working pressure min. | 1.5 bar | ||
| min. ambient temperature | -20 °c | ||
| retracting piston force | 1035 n | ||
| scraper | standard industrial scraper | ||
| piston rod | single | ||
| magnetic piston | piston with magnet | ||
| Funktionsprinzip | double-acting | ||
| piston Ø | 50 mm |
