| oil content of compressed air max. | 5 mg/m³ | ||
| max. particle size | 50 µm | ||
| min. medium temperature | -25 °c | ||
| weight +10 mm stroke | 0.05 kg | ||
| impact energy | 0.16 j | ||
| working pressure max | 10 bar | ||
| max. ambient temperature | 80 °c | ||
| extracting piston force | 507 n | ||
| pressure for determining piston forces | 6,3 bar | ||
| piston rod | non-rotating | ||
| magnetic piston | piston without magnet | ||

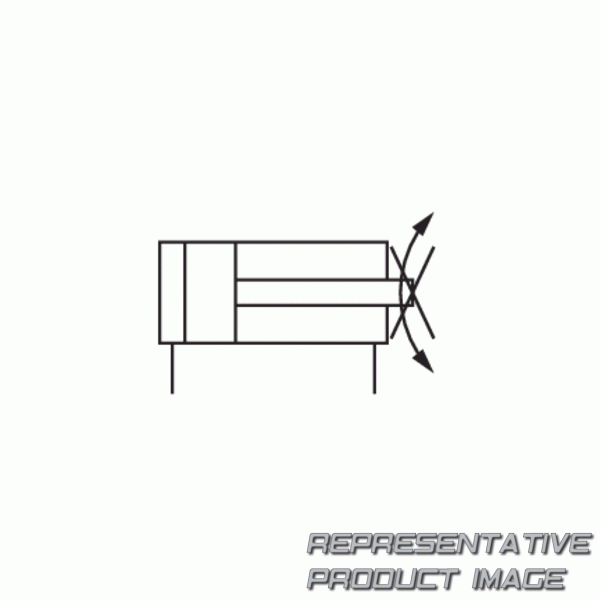

| Funktionsprinzip | double-acting | ||
| piston Ø | 32 mm |
| oil content of compressed air min. | 0 mg/m³ | ||
| max. medium temperature | 80 °c | ||
| Medium | compressed air | ||
| weight 0 mm stroke | 0.195 kg | ||
| Anschlüsse | g 1/8 | ||
| working pressure min. | 0.6 bar | ||
| min. ambient temperature | -25 °c | ||
| retracting piston force | 435 n | ||
| scraper | standard industrial scraper | ||
| environmental requirements | industry standard | ||
| Dämpfung | elastic cushioning | ||
| Hub | 50 mm |
