| Cover | die-cast aluminum | ||
| Gewicht | 2.56 kg | ||
| oil content of compressed air max. | 5 mg/m³ | ||
| max. ambient temperature | 80 °c | ||
| max. particle size | 5 µm | ||
| max. medium temperature | 80 °c | ||
| release pressure max. | 8 bar | ||
| compressed air connection | g 1/8 | ||
| suitable piston rod Ø | 20 mm | ||

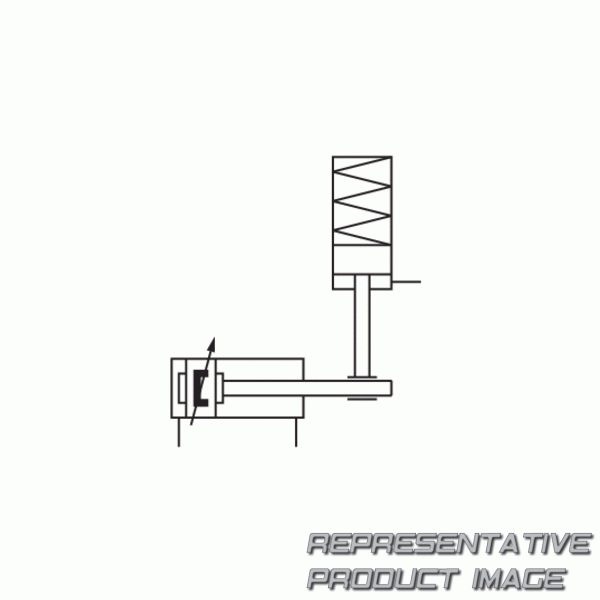

| Funktion | hold: spring force, release: compressed air |
| housing | aluminum | ||
| Static holding force | 2700 n | ||
| oil content of compressed air min. | 0 mg/m³ | ||
| min. ambient temperature | -20 °c | ||
| Medium | compressed air | ||
| min. medium temperature | -20 °c | ||
| release pressure min. | 5.5 bar | ||
| Piston rod extension | 100 mm | ||
| piston Ø | 50 mm, 63 mm |
