| material actuating control | steel, polyoxymethylene | ||
| Gehäusematerial | aluminum | ||
| compressed air connection, exhaust | g 1/4 | ||
| compressed air connection type | internal thread | ||
| oil content of compressed air max. | 5 mg/m³ | ||
| Medium | compressed air | ||
| min. medium temperature | -30 °c | ||
| min. ambient temperature | -30 °c | ||
| Typ | poppet valve | ||
| working pressure max | 10 bar | ||
| compressed air connection output | g 1/4 | ||
| nominal flow qn | 550 l/min |
| seal material | acrylonitrile butadiene rubber | ||
| Gewicht | 0.28 kg | ||
| compressed air connection input | g 1/4 | ||
| max. particle size | 5 µm | ||
| oil content of compressed air min. | 0 mg/m³ | ||
| max. medium temperature | 80 °c | ||
| max. ambient temperature | 80 °c | ||
| plate connection | pipe connection | ||
| actuating element | roller lever, one-way trip | ||
| working pressure min. | 0 bar | ||

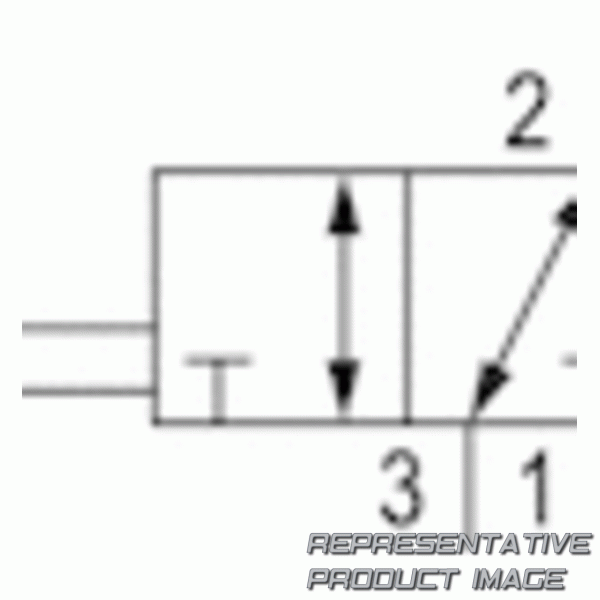

| switching principle | 3/2 | ||
| activation | mechanical |
