| Material spindle | Rolled steel | ||
| Material slide | Anodised wrought aluminium alloy | ||
| Material yoke plate | Anodised wrought aluminium alloy | ||
| Material guide rail | Rolled steel | ||
| Werkstoff-Hinweis | RoHS-compliant | ||
| Befestigungsart | Via female thread Via centring sleeve With accessories Via cylindrical pin | ||
| Grundgewicht bei 0 mm Hub | 1.555 g | ||
| Zuschlag bewegte Masse pro 10 mm Hub | 40 g | ||
| Maintenance interval | Life-time lubrication | ||
| Static basic load rating fixed bearing | 7.000 N | ||
| Mass moment of inertia JO | 0,066 kgcm² | ||
| Mass moment of inertia JH per metre of stroke | 0,115 kgcm² | ||
| Static basic load rating ball screw | 10.600 N | ||
| Reference value effective load, horizontal | 25 kg | ||
| Max. radial force at drive shaft | 230 N | ||
| Max. Moment My | 30 Nm | ||
| Max. Kraft Fz | 4.937 N | ||
| Dynamic basic load rating ball screw | 5.900 N | ||
| Dynamic basic load rating fixed bearing | 13.321 N | ||
| Schutzart | IP40 | ||
| LABS-Konformität | VDMA24364 zone III | ||
| Einschaltdauer | 100% | ||
| Max. Geschwindigkeit | 0,25 m/s | ||
| Positionserkennung | Via proximity switch | ||
| Spindle type | Ball screw drive | ||
| Type of motor | Stepper motor Servo motor | ||
| Führung | Recirculating ball bearing guide | ||
| Spindle pitch | 5 mm/U | ||
| Reversing backlash theoretical | 150 µm | ||
| Baugröße | 60 |
| Material spindle nut | Rolled steel | ||
| Werkstoff Kolbenstange | High-alloy stainless steel | ||
| Werkstoff Gehäuse | Anodised wrought aluminium alloy | ||
| Material guide slide | Rolled steel | ||
| Interface code, actuator | T42 | ||
| Gewichtszuschlag pro 10 mm Hub | 95 g | ||
| Produktgewicht | 2.267 g | ||
| Bewegte Masse bei 0 mm Hub | 675 g | ||
| Reference value operational performance | 5.000 km | ||
| Feed constant | 5 mm/U | ||
| Mass moment of inertia JL per kg of working load | 0,006 kgcm² | ||
| Static basic load rating linear guide | 26.900 N | ||
| Reference value effective load, vertical | 25 kg | ||
| Max. feed force Fx | 250 N | ||
| Max. Moment Mz | 30 Nm | ||
| Max. Moment Mx | 20 Nm | ||
| Max. Kraft Fy | 4.937 N | ||
| Dynamic basic load rating linear guide | 13.400 N | ||
| Umgebungstemperatur | 0 °C ... 50 °C | ||
| Schalldruckpegel | 55 dB(A) | ||
| Korrosionsbeständigkeitsklasse KBK | 0 - No corrosion stress | ||
| Wiederholgenauigkeit | ±0.015 mm | ||
| Max. acceleration | 5 m/s² | ||
| Symbol | 00992069 | ||
| Referencing | Positive fixed stop block Negative fixed stop block Reference switch | ||

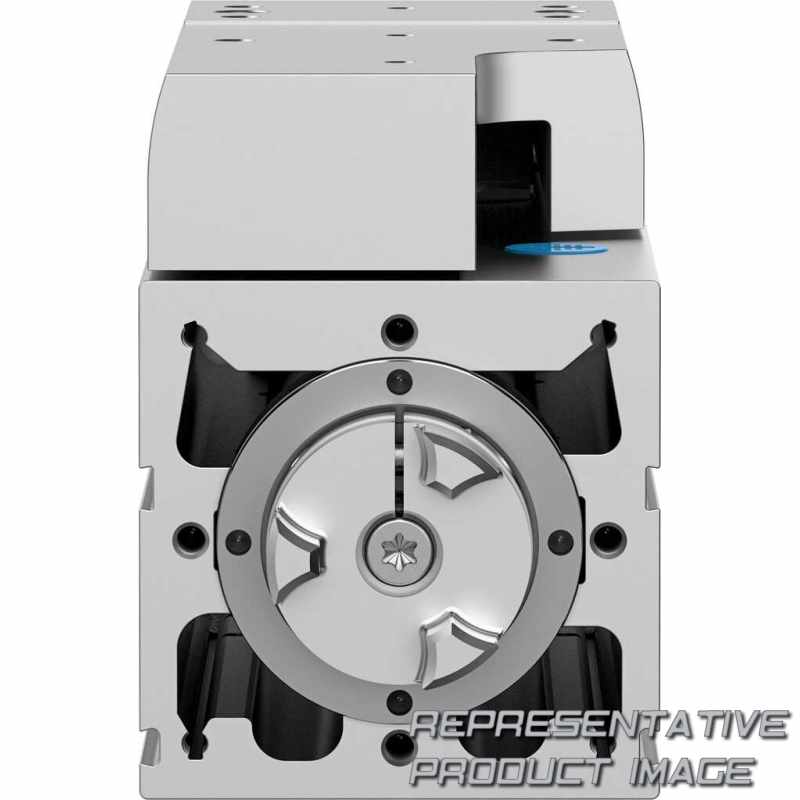

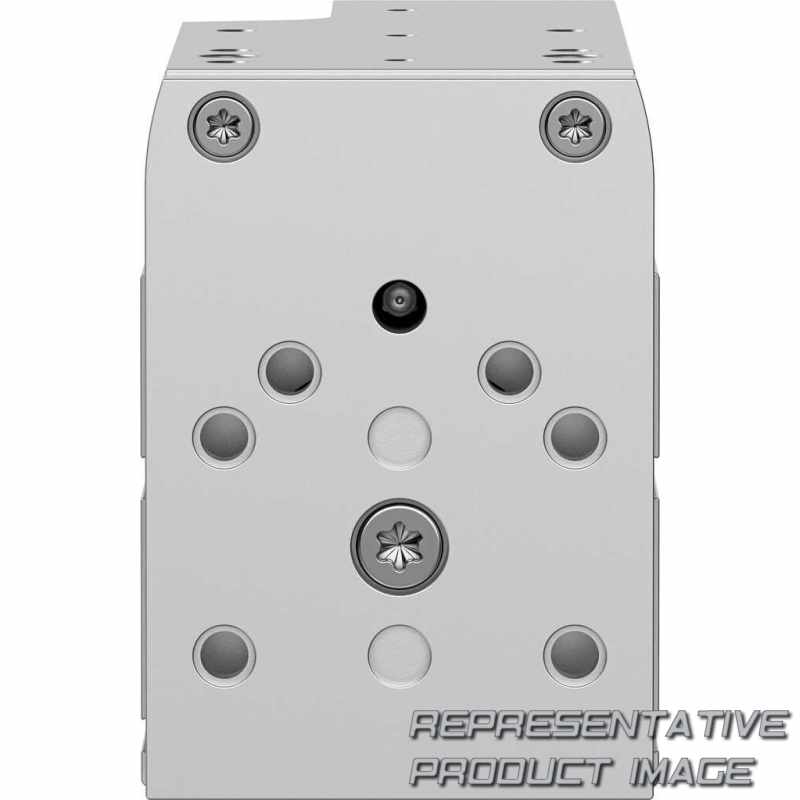

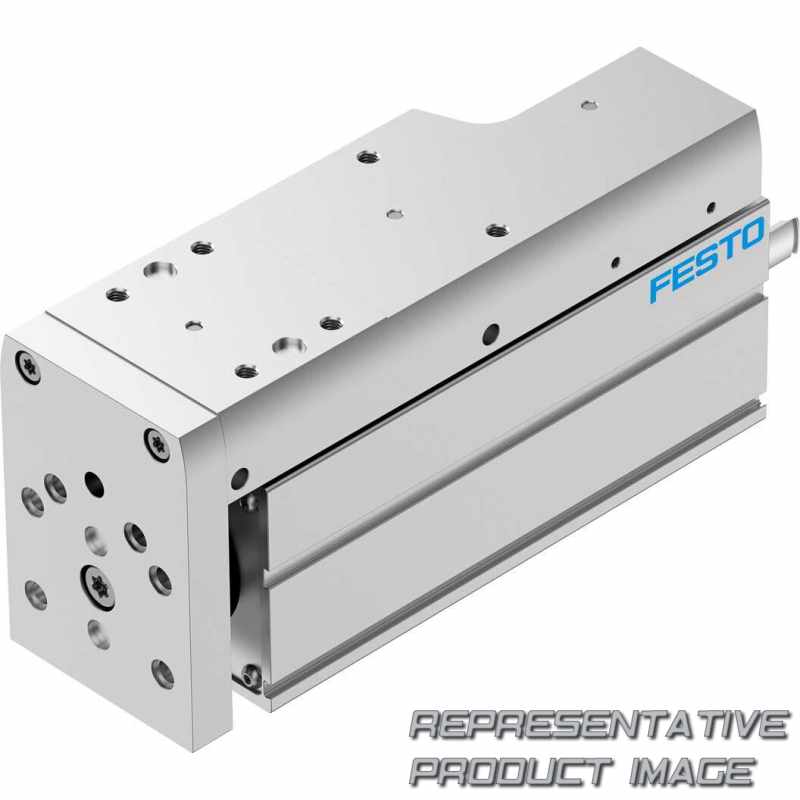

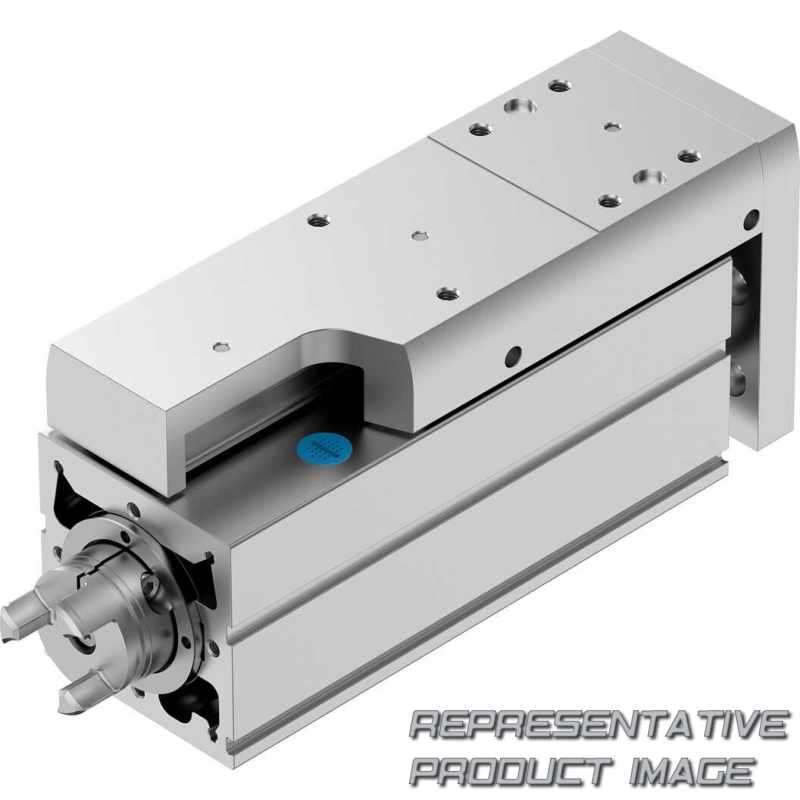

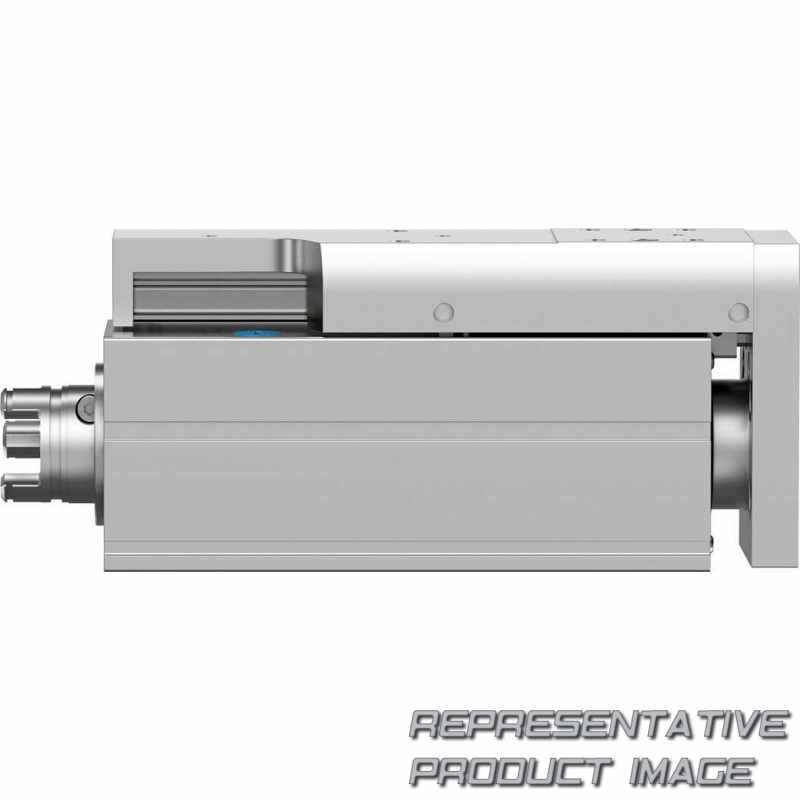

| Konstruktiver Aufbau | Electric mini slide With ball screw drive | ||
| Einbaulage | optional | ||
| Spindle diameter | 12 mm | ||
| Stroke reserve | 0 mm | ||
| Working stroke | 75 mm |
