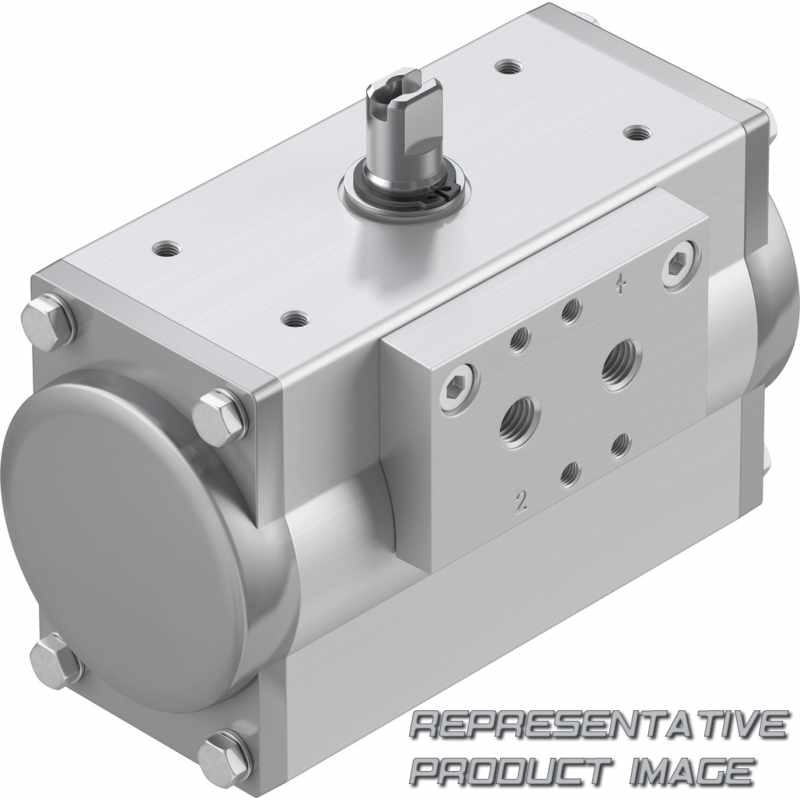

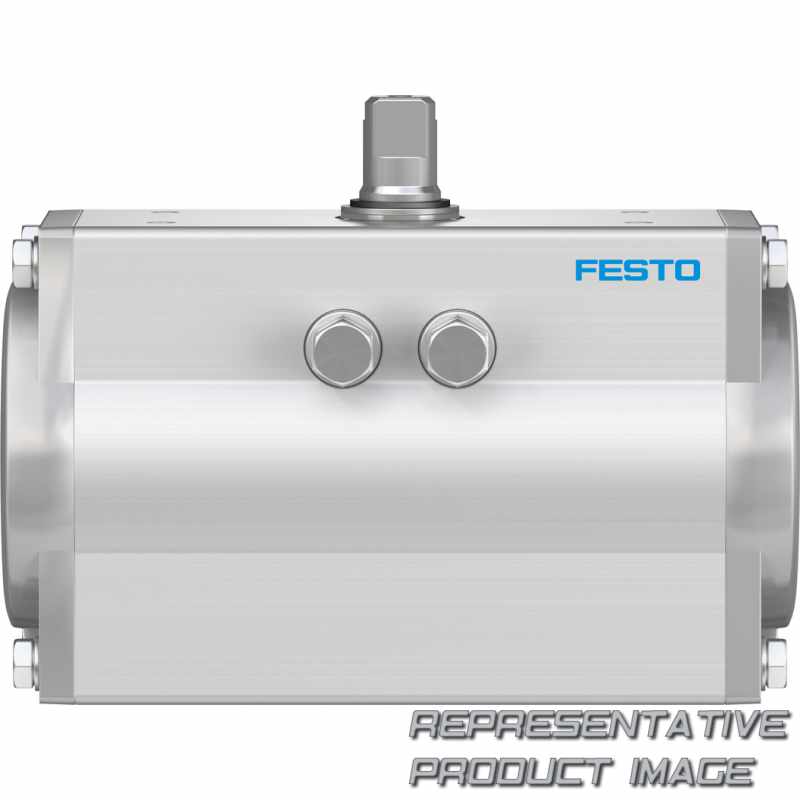

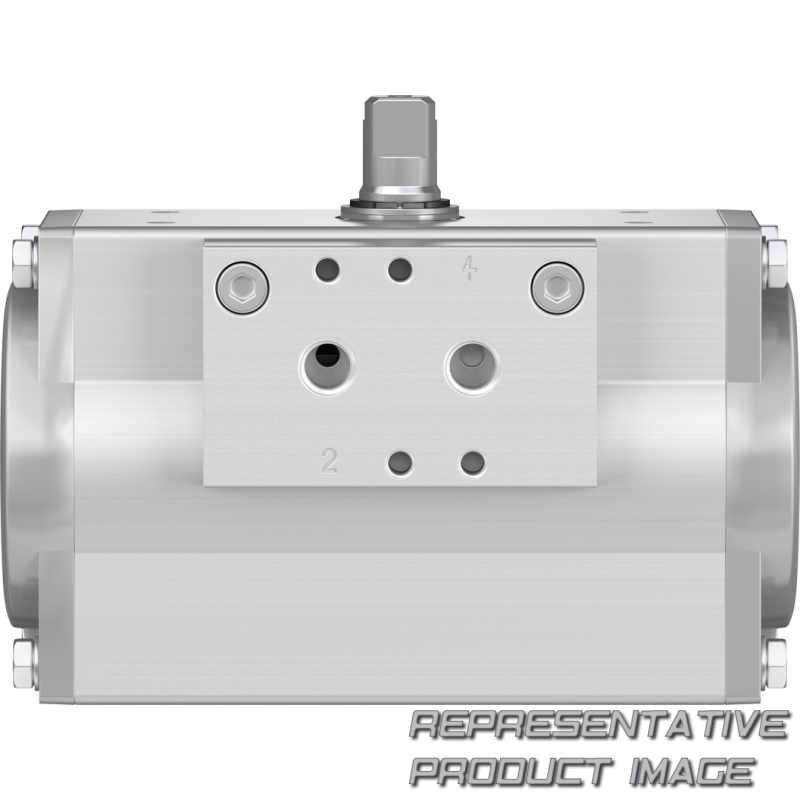

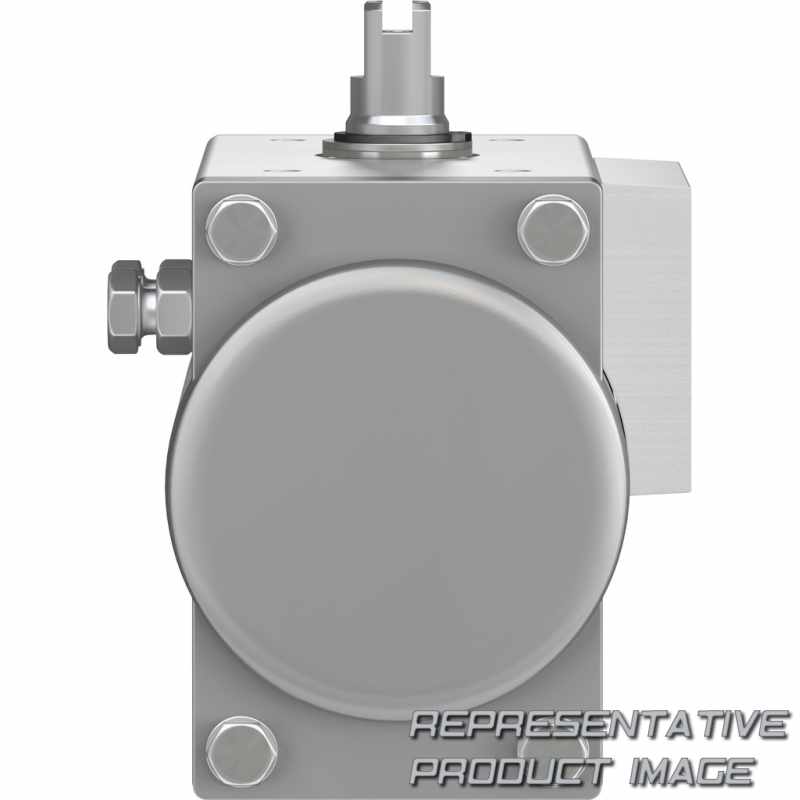

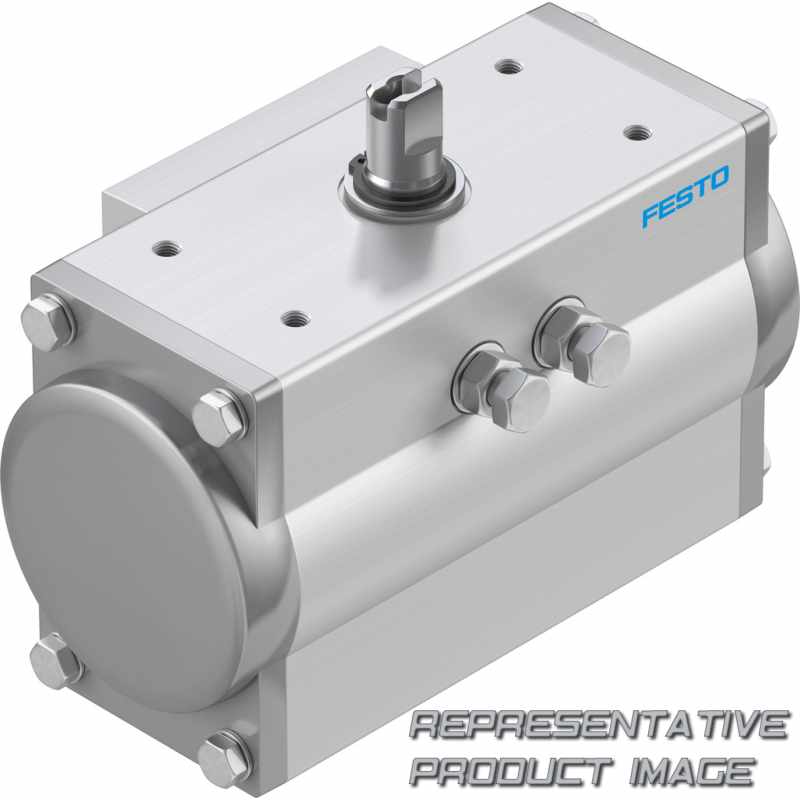

| Flanschbohrbild | F03 F04 F05 | ||
| CE marking (see declaration of conformity) | To UK EX instructions | ||
| Maritime Klassifizierung | See certificate | ||
| Betriebsdruck | 2 bar ... 8 bar | ||
| Connection point for positioner and position sensor conforms to standard | VDI/VDE 3845 size AA 1 | ||
| Symbol | 00991265 00991266 | ||
| Konstruktiver Aufbau | Rack and pinion | ||
| Einbaulage | optional | ||
| Explosionsschutz | Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) | ||
| End-position adjustment range at nominal swivel angle | -5 deg ... 5 deg | ||
| Schwenkwinkel | 90 deg ... 180 deg | ||
| Zertifikat ausstellende Stelle | DNVGL TAP00001CE German Technical Control Board (TÜV) Rheinland 968/V 1106.00/19 | ||
| Lagertemperatur | -20 °C ... 60 °C | ||
| Torque at nominal operating pressure and 90° swivel angle | 2,5 Nm ... 20,1 Nm | ||
| Spring return torque at 0° swivel angle | 2,4 Nm ... 7,2 Nm | ||
| Air consumption at 0.6 MPa (6 bar, 87 psi) per cycle 0°-nominal swivel angle-0° | 0,8 l ... 1,8 l | ||
| Shaft connection | T9 T11 | ||
| Werkstoff-Hinweis | Contains paint-wetting impairment substances RoHS-compliant | ||
| Werkstoff Deckel | Die-cast aluminium, coated | ||
| ATEX-Kategorie Gas | II 2G | ||
| Werkstoff Gehäuse | Anodised wrought aluminium alloy | ||
| Werkstoff Lager | POM PPS reinforced | ||
| Werkstoff Schrauben | High-alloy stainless steel | ||
| ATEX-Kategorie Staub | II 2D | ||
| Ex-Zündschutzart Gas | Ex h IIC T3 Gb X Ex h IIC T4 Gb X Ex h IIC T6 Gb X | ||
| Ex-Umgebungstemperatur | -20°C <= Ta <= +80°C -50°C <= Ta <= +60°C 0°C <= Ta <= +150°C |
| Size of valve actuator | 20 | ||
| CE-Zeichen (siehe Konformitätserklärung) | To EU Explosion Protection Directive (ATEX) | ||
| Nennbetriebsdruck | 2 bar ... 6 bar | ||
| Safety Integrity Level (SIL) | Up to SIL 2 High Demand mode | ||
| Valve connection conforms to standard | VDI/VDE 3845 (NAMUR) | ||
| Closing direction | Closes to the right Closes to the left | ||
| Funktionsweise | Double-acting Single-acting | ||
| Fitting connection conforms to standard | ISO 5211 | ||
| Shaft connection depth | 10 mm ... 12 mm | ||
| End-position adjustment range at 0° | -5 deg ... 5 deg | ||
| Betriebsmedium | Compressed air to ISO 8573-1:2010 [7:4:4] | ||
| Hinweis zum Betriebs-/Steuermedium | Lubricated operation possible (in which case lubricated operation will always be required) | ||
| Torque at nominal operating pressure and 0° swivel angle | 4,9 Nm ... 20,1 Nm | ||
| Note on torque | The operating torque of the actuator must not be higher than the maximum permissible torque listed in ISO 5211, with reference to the size of the mounting flange and of the coupling. | ||
| Spring return torque at 90° swivel angle | 4,8 Nm ... 14,3 Nm | ||
| Produktgewicht | 1.355 g ... 1.423 g | ||
| Pneumatischer Anschluss | G1/8 1/8 NPT | ||
| Werkstoff Anschlussplatte | Anodised wrought aluminium alloy | ||
| Werkstoff Dichtungen | FPM FVMQ NBR | ||
| Werkstoff Feder | Spring steel | ||
| Werkstoff Kolben | Die-cast aluminium | ||
| Material cam | Stainless steel casting Steel High-alloy stainless steel | ||
| Werkstoff Welle | Nickel-plated steel High-alloy stainless steel | ||
| Umgebungstemperatur | -50 °C ... 150 °C | ||
| Ex-Zündschutzart Staub | Ex h IIIC T105°C Db X Ex h IIIC T175°C Db X Ex h IIIC T85°C Db X |
