| Brand | NTN | ||

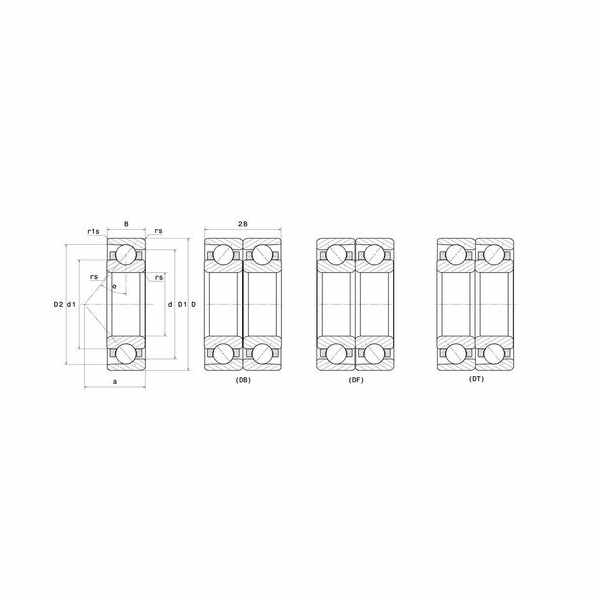

| rs - Min fillet radius | 2 mm | ||
| Radial clearance class | CN | ||
| C0 - Static load | 37,7 kN | ||
| Tmin - Min operating temperature | -40 °C | ||
| BPFO - Characteristic outer ring frequency | 3,588 Hz | ||
| FTF - Characteristic cage frequency | 0,399 Hz | ||

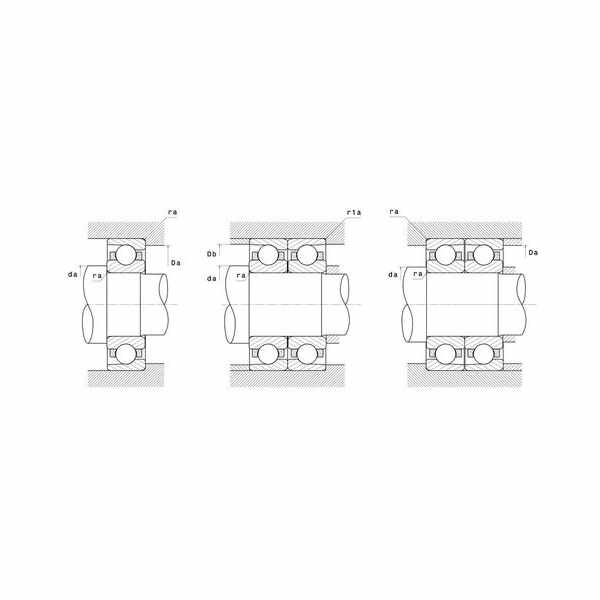

| da min - Min shoulder diameter IR | 240 mm | ||
| Db max - Max OR shoulder diameter | 104,5 mm | ||
| ra max - Max shaft & housing fillet radius | 1 mm |
| α - Contact angle | 40 ° | ||
| r1s - Min fillet radius | 1 mm | ||
| C - Dynamic load | 60,6 kN | ||
| Cu - Fatigue limit load | 1,71 kN | ||
| Tmax - Max operating temperature | 120 °C | ||
| BPFI - Characteristic inner ring frequency | 5,412 Hz | ||
| BSF - Characteristic rolling element frequency | 3,627 Hz | ||
| Da max - Max shoulder diameter OR | 100 mm | ||
| r1a - Max fillet radius | 1 mm |
