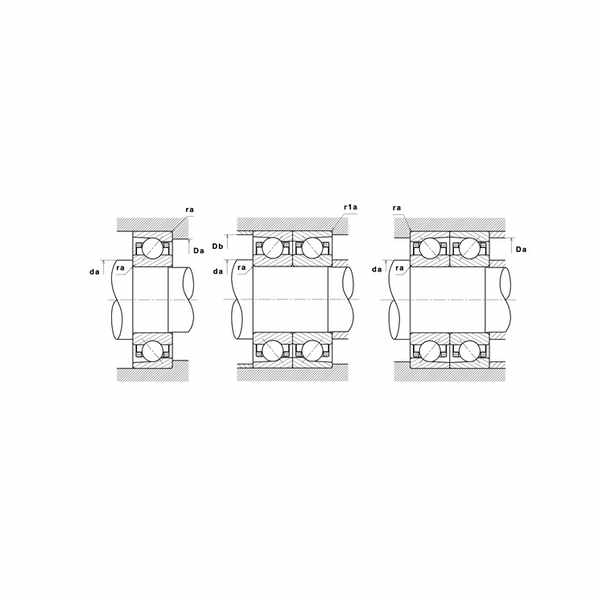

| ra max - Max shaft & housing fillet radius | 1 mm | ||
| Db max - Max OR shoulder diameter | 49,5 mm | ||
| db min - Min IR shoulder diameter | 35,5 mm | ||
| BSF - Characteristic rolling element frequency | 5,792 Hz | ||
| BPFI - Characteristic inner ring frequency | 9,299 Hz | ||
| Nlim - Grease lubrication limit speed | 27000 tr/min | ||
| Tmax - Max operating temperature | 120 °C | ||
| Radial rigidity | 249 N/µm | ||
| Preload value | 0,085 kN | ||
| Axial displacement K Factor | 1,52 | ||
| Cu - Fatigue limit load | 0,62 kN | ||
| C - Dynamic load | 16,4 kN | ||

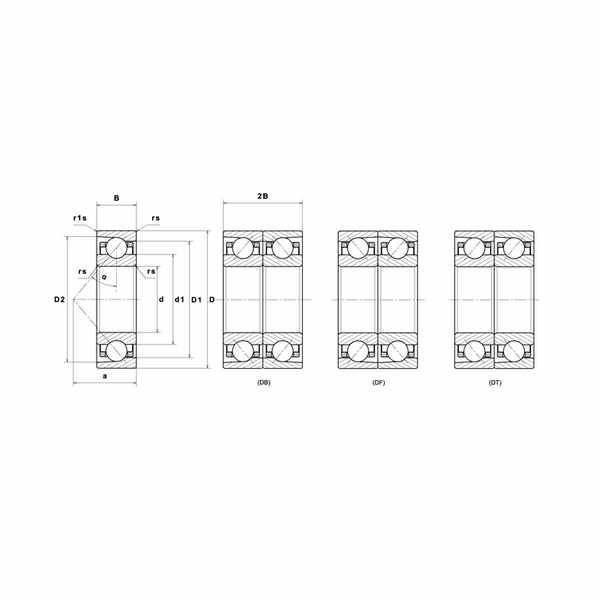

| rs - Min fillet radius | 1 mm | ||
| a - Charge load application point | 12 mm | ||
| D1 - Inner diameter outer ring | 46,95 mm |
| r1a - Max fillet radius | 0,6 mm | ||
| Da max - Max shoulder diameter OR | 49,5 mm | ||
| da min - Min shoulder diameter IR | 35,5 mm | ||
| FTF - Characteristic cage frequency | 0,419 Hz | ||
| BPFO - Characteristic outer ring frequency | 6,701 Hz | ||
| Nlim - Oil lubrication limit speed | 41000 tr/min | ||
| Tmin - Min operating temperature | -30 °C | ||
| Axial rigidity | 43 N/µm | ||
| Preload level | 7 | ||
| f0 - Coefficient | 14,87 | ||
| C0 - Static load | 11,7 kN | ||
| r1s - Min fillet radius | 0,6 mm | ||
| α - Contact angle | 15 ° | ||
| D2 - Inner diameter outer ring | 50,42 mm | ||
| Brand | SNR |
