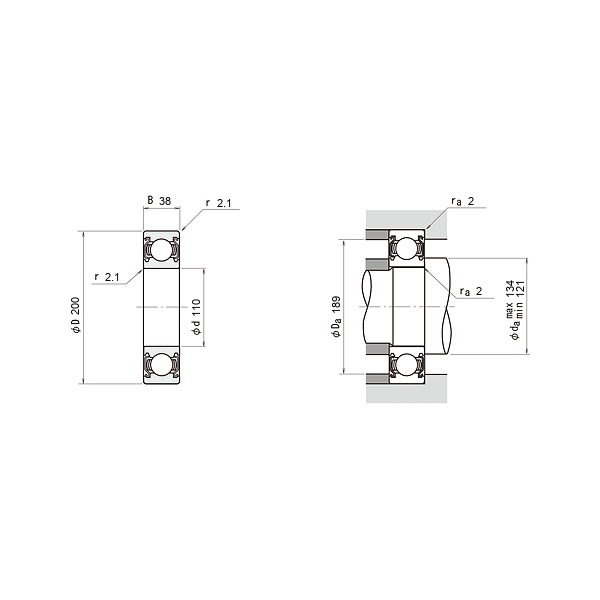

| Bore diameter | d | 110 | mm |
| Breite | B | 38 | mm |
| Basic static load rating, radial | C0r | 117,000 | |
| Limiting speed | nG | 4,450 |
| Außen-Ø | D | 200 | mm |
| Basic dynamic load rating, radial | Cr | 153,000 | |
| Fatigue load limit, radial | Cur | 6,500 | |
| Reference speed | nϑr | 4,500 |
| Minimum diameter shaft shoulder | da min | 122 | mm |
| Maximum fillet radius | ra max | 2,10 | mm |
| Maximum diameter of housing shoulder | Da max | 188 | mm |
| Minimum chamfer dimension | rmin | 2,10 | mm |
| Shoulder diameter inner ring | d1 | 138,40 | mm |
| Shoulder diameter outer ring | D1 | 172,30 | mm |
| Hersteller | Teilenummer |
|---|---|
| SKF | 6222 /C3 VL0241 (SKF) |
