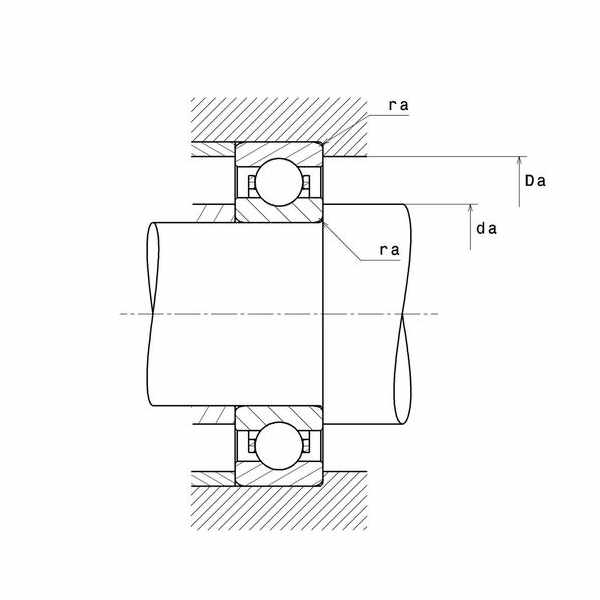

| ra max - Max shaft & housing fillet radius | 1,5 mm | ||
| da min - Min shoulder diameter IR | 68 mm | ||
| FTF - Characteristic cage frequency | 0,408 Hz | ||
| BPFO - Characteristic outer ring frequency | 4,082 Hz | ||
| Tmin - Min operating temperature | -40 °C | ||
| Cu - Fatigue limit load | 1,64 kN | ||
| C - Dynamic load | 58 kN | ||

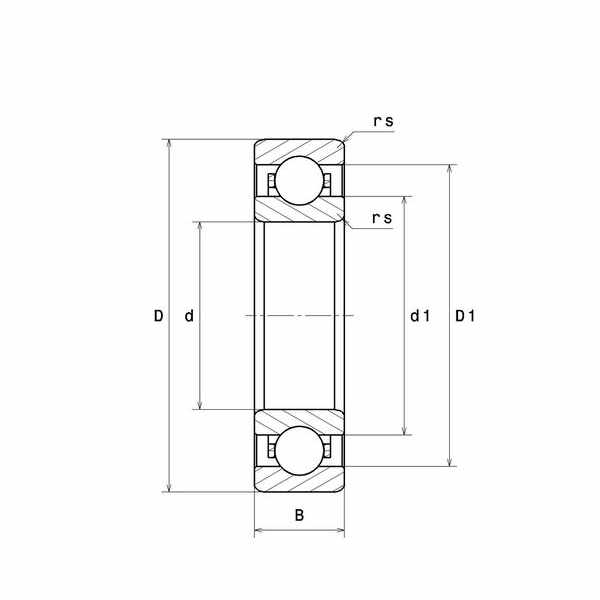

| rs - Min fillet radius | 1,5 mm |
| Da max - Max shoulder diameter OR | 102 mm | ||
| BSF - Characteristic rolling element frequency | 5,265 Hz | ||
| BPFI - Characteristic inner ring frequency | 5,918 Hz | ||
| Tmax - Max operating temperature | 120 °C | ||
| f0 - Coefficient | 14,30 | ||
| C0 - Static load | 36 kN | ||
| Radial clearance class | CN | ||
| Brand | NTN |
