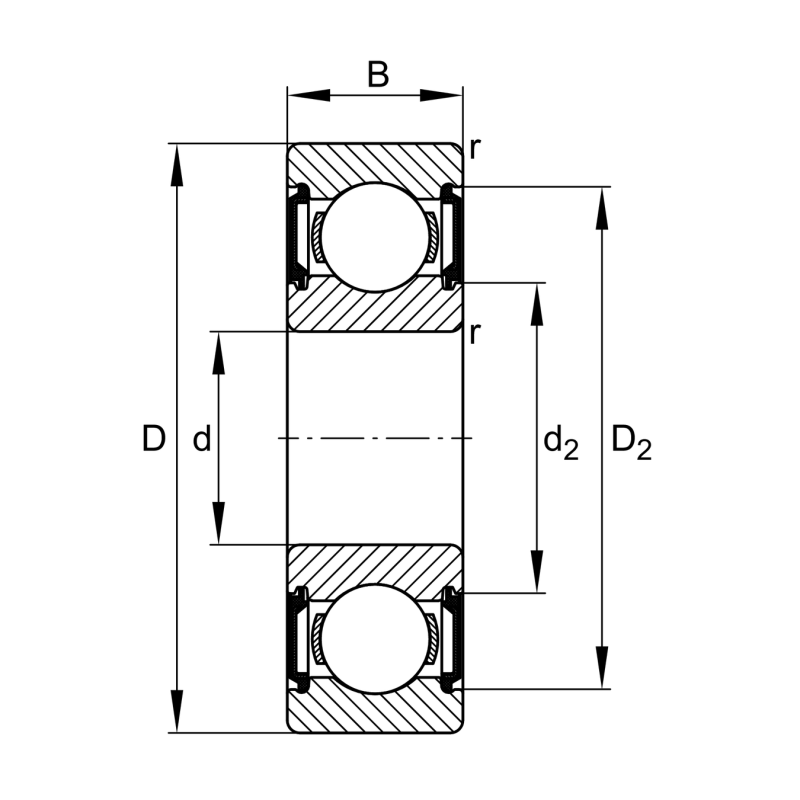

| Caliber diameter inner ring | d2 | 26,60 | mm |
| Minimum chamfer dimension | rmin | 1 | mm |
| Caliber diameter outer ring | D2 | 41,40 | mm |

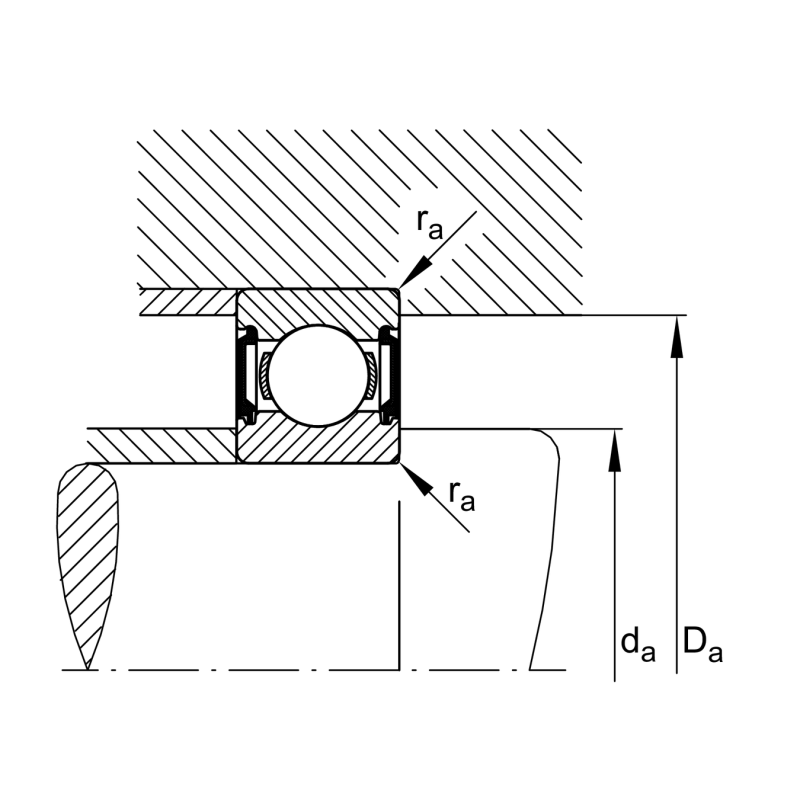

| Maximum fillet radius | ra max | 1 | mm |
| Minimum diameter shaft shoulder | da min | 25,60 | mm |
| Maximum diameter of housing shoulder | Da max | 41,40 | mm |
| Reference speed | nϑr | 18,100 | |
| Fatigue load limit, radial | Cur | 445 | N |
| Basic dynamic load rating, radial | Cr | 14,700 | |
| Außen-Ø | D | 47 | mm |
| Limiting speed | nG | 20,600 | |
| Basic static load rating, radial | C0r | 6,600 | |
| Breite | B | 14 | mm |
| Bore diameter | d | 20 | mm |
