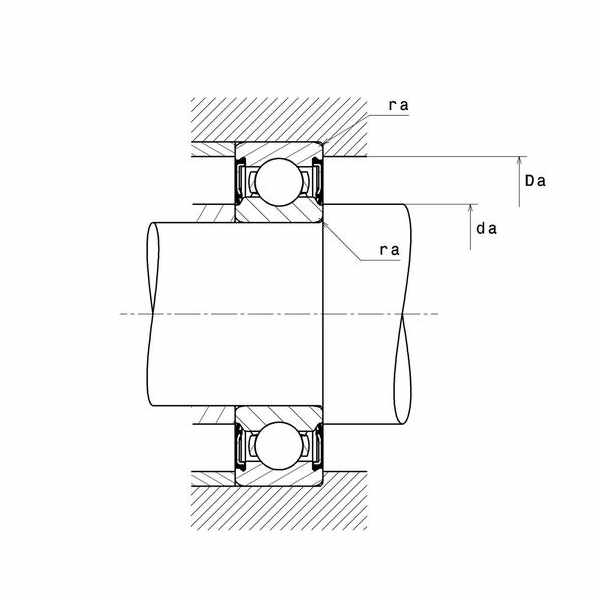

| ra max - Max shaft & housing fillet radius | 0,6 mm | ||
| da max - Max shoulder diameter IR | 21,1 mm | ||
| BSF - Characteristic rolling element frequency | 3,972 Hz | ||
| BPFI - Characteristic inner ring frequency | 4,95 Hz | ||
| Tmax - Max operating temperature | 120 °C | ||
| Nlim - Mechanical Limit Speed | 14000 tr/min | ||
| Cu - Fatigue limit load | 0,17 kN | ||
| C - Dynamic load | 8,1 kN | ||

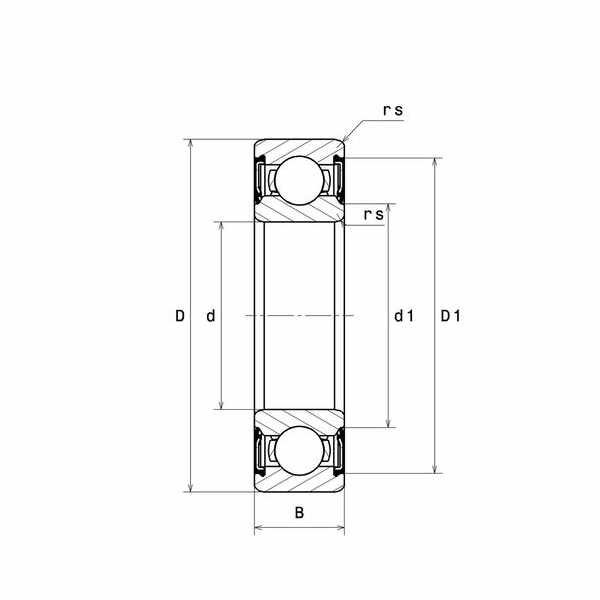

| rs - Min fillet radius | 0,6 mm | ||
| Brand | SNR |
| Da max - Max shoulder diameter OR | 31 mm | ||
| da min - Min shoulder diameter IR | 19 mm | ||
| FTF - Characteristic cage frequency | 0,381 Hz | ||
| BPFO - Characteristic outer ring frequency | 3,05 Hz | ||
| Tmin - Min operating temperature | -40 °C | ||
| f0 - Coefficient | 13,10 | ||
| C0 - Static load | 3,75 kN | ||
| Radial clearance class | C3 | ||
| D1 - Inner diameter outer ring | 30,5 mm |
