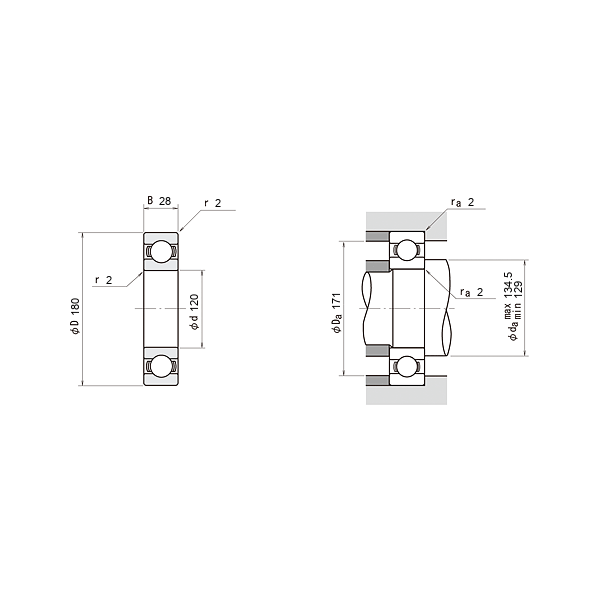

| Shoulder diameter inner ring | d1 | 139,90 | mm |
| Minimum chamfer dimension | rmin | 2 | mm |
| Shoulder diameter outer ring | D1 | 161,20 | mm |
| Maximum fillet radius | ra max | 2 | mm |
| Minimum diameter shaft shoulder | da min | 128,80 | mm |
| Maximum diameter of housing shoulder | Da max | 171,20 | mm |
| Reference speed | nϑr | 4,450 | |
| Fatigue load limit, radial | Cur | 3,650 | |
| Basic dynamic load rating, radial | Cr | 88,000 | |
| Außen-Ø | D | 180 | mm |
| Limiting speed | nG | 5,000 | |
| Basic static load rating, radial | C0r | 77,000 | |
| Breite | B | 28 | mm |
| Bore diameter | d | 120 | mm |
| Hersteller | Teilenummer |
|---|---|
| NSK | 6024 (NSK) |
| SKF | 6024 (SKF) |
| Marlin-Rockwell Corp. | 124KS |
| ZKL-ZVL | 6024 |
| Landsverk Excavators | 20-40C77 |
| Hyatt | 3L24 |
| GPZ Bearings | 124 |
| SKC | 5942888 |
| Torrington | 120BC10 |
| Fafnir | 9124K |
| Schiess-Froriep | 306024 |
| Steyr-Daimler-Puch | 6024 |
| NSK | 6024CM |
| RIV Officine di Villar Perosa | ELL120 |
| SKC | 3014691 |
| Steyr-Daimler-Puch | 632623 |
| Landsverk Excavators | 20-40C24 |
| ZF | 0635331239 |
| KOYO | 6024 |
| MGM Bearings | 6024 |
| Soma | 75600123 |
| FLT | 6024 |
| SNR | 6024 |
| ISO | 120BC10 |
