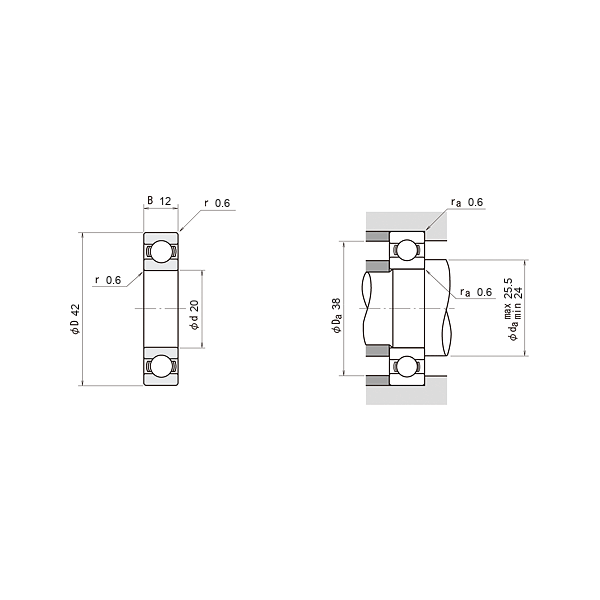

| Minimum chamfer dimension | rmin | 0,60 | mm |
| Caliber diameter inner ring | d2 | 25,30 | mm |
| Caliber diameter outer ring | D2 | 37 | mm |
| Bore diameter | d | 20 | mm |
| Breite | B | 12 | mm |
| Basic static load rating, radial | C0r | 5,030 | |
| Limiting speed | nG | 21,100 |
| Außen-Ø | D | 42 | mm |
| Basic dynamic load rating, radial | Cr | 9,380 | |
| Fatigue load limit, radial | Cur | 300 | N |
| Reference speed | nϑr | 18,200 |
| Minimum diameter shaft shoulder | da min | 23,20 | mm |
| Maximum fillet radius | ra max | 0,60 | mm |
| Maximum diameter of housing shoulder | Da max | 38,80 | mm |
