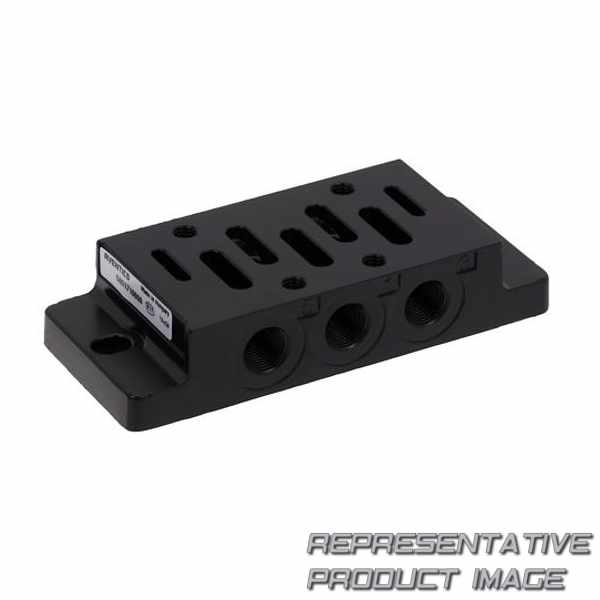

| Material base plate | die-cast aluminum | ||
| Max. number of valve positions | 1 | ||
| max. medium temperature | 70 °c | ||
| max. ambient temperature | 70 °c | ||
| working pressure max | 16 bar | ||
| Standards | iso 5599-1 | ||
| compressed air connection 14 | g 1/8 | ||
| exhaust (3,5) | with directional exhaust (3/5) | ||
| port 3 / 5 | g 1/8 | ||
| compressed air connection 2 / 4 | g 1/8 | ||
| compressed air connection 1 | g 1/8 | ||
| Typ | base plate |
| Gewicht | 0.11 kg | ||
| Medium | compressed air | ||
| min. medium temperature | -20 °c | ||
| min. ambient temperature | -20 °c | ||
| working pressure min. | -1 bar | ||
| frame size | iso 1 | ||
| direction of pneumatic port (14) | on the side | ||
| exhaust type | ports separated | ||
| direction of pneumatic port (3,5) | on the side | ||
| direction of pneumatic port (2,4) | on the side | ||
| direction of pneumatic port (1) | on the side |
