| Gewicht | 0.57 kg | ||
| max. ambient temperature | 50 °c | ||
| Dichtprinzip | soft seal | ||
| typ. switch-on time | 25 ms | ||
| basic valve with electrical connector | basic valve without coil | ||
| pilot valve width | 30 mm | ||
| connector standard | en 175301-803:2006 | ||
| electrical connection type | plug | ||
| working pressure min. | 3.5 bar | ||
| nominal flow qn | 1200 l/min | ||
| Handhilfsbetätigung | with detent | ||

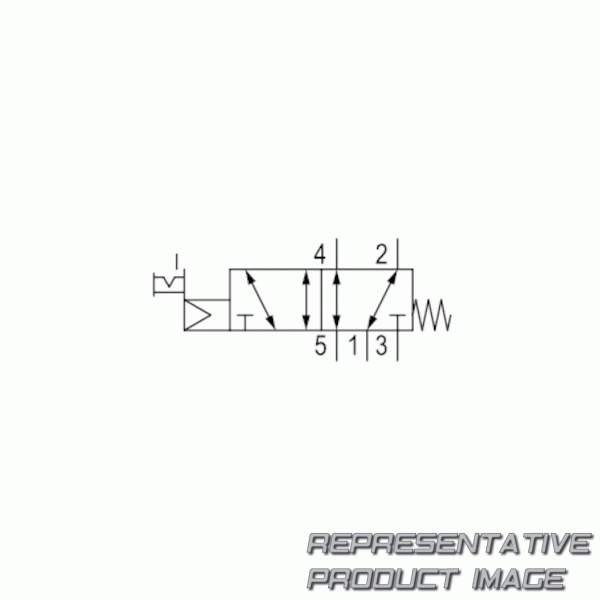

| switching principle | 5/2, with spring return | ||
| activation | electrically |
| temperature resistance | -40 °c cold-resistant | ||
| min. ambient temperature | -40 °c | ||
| typ. switch-off time | 45 ms | ||
| Einschaltdauer | 100 % | ||
| compatibility index | 13, 14 | ||
| Verpolungsschutz | protected against polarity reversal | ||
| electrical connection size | en 175301-803, form a | ||
| working pressure max | 10 bar | ||
| compressed air connection | g 1/4 | ||
| pilot | internal | ||
| actuating control | single solenoid | ||
| frame size | cd07 |
