| activation | electrically | ||

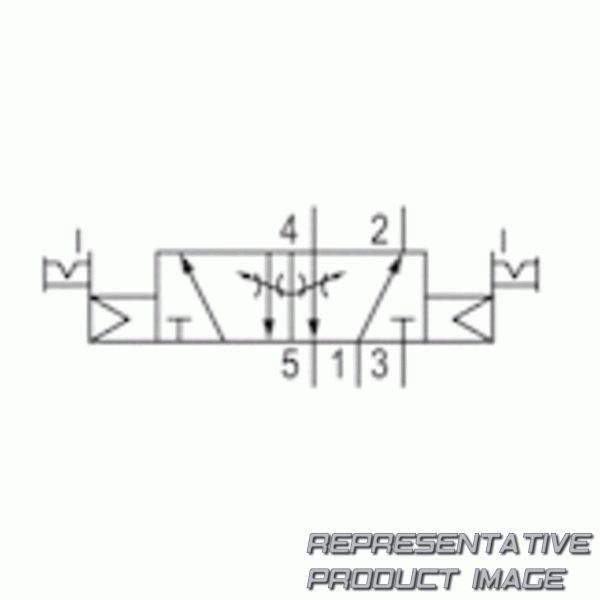

| switching principle | 5/2 | ||
| working pressure min. | 1.5 bar | ||
| Handhilfsbetätigung | with detent | ||
| electrical connection size | en 175301-803, form a | ||
| Dichtprinzip | soft seal | ||
| atex | atex optional | ||
| basic valve with electrical connector | basic valve without coil | ||
| Anschlussart | pipe connection | ||
| can be assembled into blocks | can be assembled into blocks | ||
| max. ambient temperature | 50 °c | ||
| max. medium temperature | 50 °c | ||
| max. particle size | 50 µm |
| nominal flow qn | 950 l/min | ||
| compressed air connection output | Ø 10x1 | ||
| working pressure max | 10 bar | ||
| electrical connection type | plug | ||
| actuating control | double solenoid | ||
| pilot | internal | ||

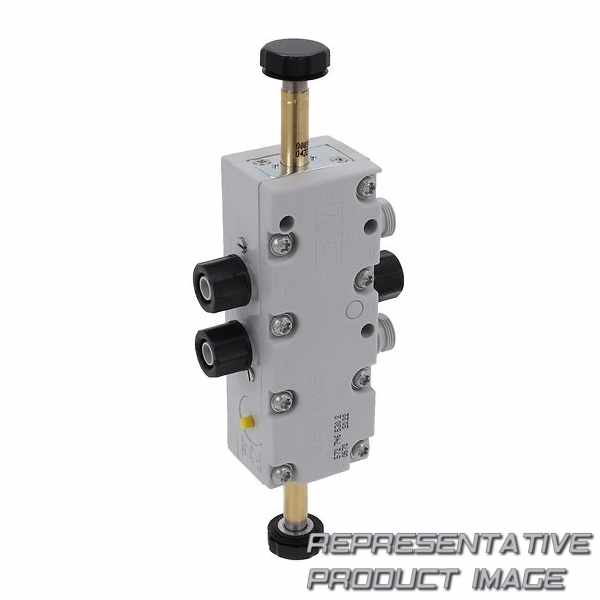

| valve type | diaphragm poppet valve | ||
| throttle | with throttle | ||
| blocking principle | plate principle, single base plate principle | ||
| min. ambient temperature | -15 °c | ||
| min. medium temperature | -15 °c | ||
| Medium | compressed air |
