| max. medium temperature | 80 °c | ||
| max. ambient temperature | 80 °c | ||
| atex | suitable for atex | ||
| control pressure min. | 3 bar | ||
| working pressure min. | -0.95 bar | ||
| nominal flow qn | 900 l/min | ||
| compressed air connection pilot input | g 1/8 | ||
| compressed air connection output | g 1/4 | ||
| standard compressed air connection | according to iso 228-1 | ||
| Anschlussart | pipe connection | ||
| Ventilfunktion | pressurized center | ||
| valve type | spool valve, positive overlapping | ||
| activation | pneumatically |
| min. medium temperature | -25 °c | ||
| min. ambient temperature | -25 °c | ||
| control pressure max. | 10 bar | ||
| working pressure max | 10 bar | ||
| nominal flow qn 1 to 2 | 960 l/min | ||
| compressed air connection pilot exhaust | g 1/8 | ||
| compressed air connection, exhaust | g 1/4 | ||
| compressed air connection input | g 1/4 | ||
| compressed air connection | g 1/4 | ||
| Dichtprinzip | soft seal | ||

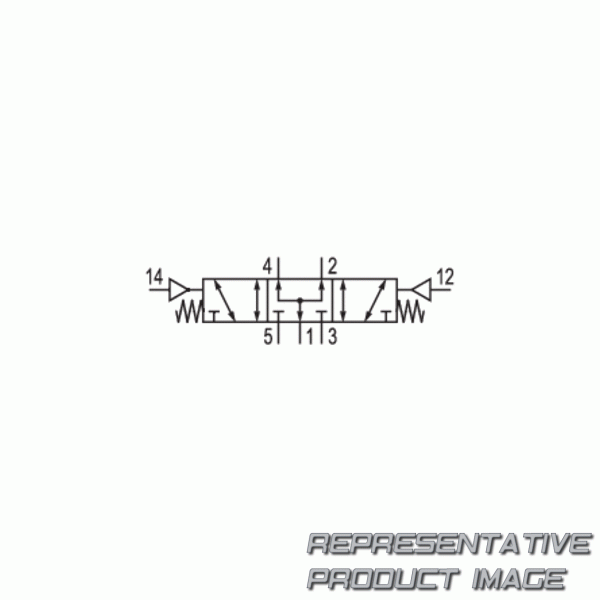

| switching principle | 5/3, pressurized center | ||
| frame size | cd07 |
