| screw-in cartridge valves | sv1-16-c-0-24dg | ||
| Baugröße | -16 : 16 size, max flow - 132 l/min [35 gpm] | ||

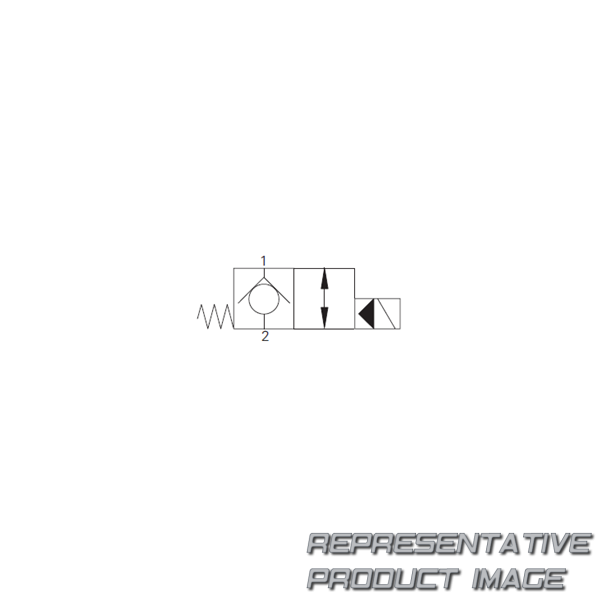

| style | -c : 2-way 2-position normally closed | ||
| filter | none | ||
| voltage type protection | none | ||
| lead length | none | ||
| valve special features | none |
| Baureihe | sv1 : sv1 - solenoid valve - 210 bar [3000 lbf/in2] | ||
| Dichtung | buna-n | ||
| Handhilfsbetätigung | no manual override | ||
| valve housing | -0 : cartridge only | ||
| connector type | none | ||
| coil special feature | none | ||
| valve housing port | -2 |
