| compressed air connection input | g 1/2 | ||
| oil content of compressed air min. | 0 mg/m³ | ||
| Medium | compressed air | ||
| min. medium temperature | -20 °c | ||
| min. ambient temperature | -20 °c | ||
| control pressure min. | 3.5 bar | ||
| valve type | poppet valve | ||
| electrical connection size | en 175301-803, form a | ||
| Handhilfsbetätigung | with detent | ||
| operational voltage ac at 60 hz | 110 v | ||
| working pressure min. | 3.5 bar | ||

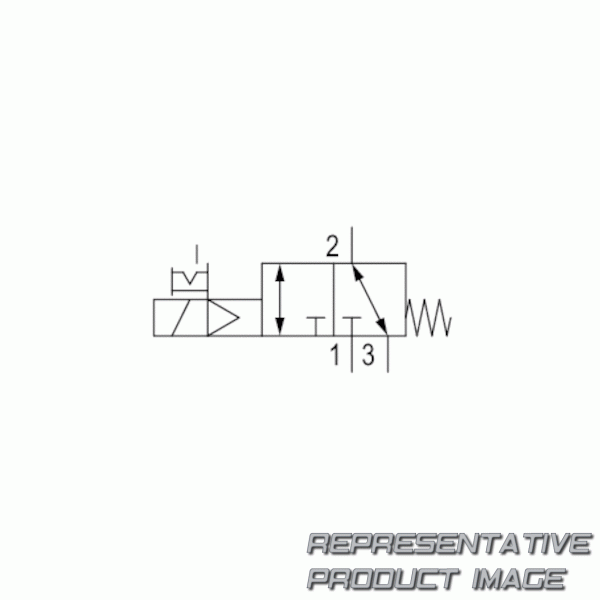

| switching principle | 3/2 | ||
| activation | electrically |
| oil content of compressed air max. | 5 mg/m³ | ||
| max. particle size | 5 µm | ||
| max. medium temperature | 50 °c | ||
| max. ambient temperature | 50 °c | ||
| control pressure max. | 10 bar | ||
| Anschlussart | plate connection | ||
| pilot | external, internal | ||
| electrical connection type | plug | ||
| voltage tolerance ac 60 hz | -10% / +10% | ||
| working pressure max | 10 bar | ||
| Ausführung | no/nc | ||
| nominal flow qn | 4240 l/min |
