| oil content of compressed air min. | 0 mg/m³ | ||
| max. medium temperature | 70 °c | ||
| max. ambient temperature | 70 °c | ||
| atex | suitable for atex | ||
| actuating force min. | 26 n | ||
| working pressure min. | -0.95 bar | ||
| compressed air connection, exhaust | g 1/4 | ||
| compressed air connection input | g 1/4 | ||
| compressed air connection | g 1/4 | ||

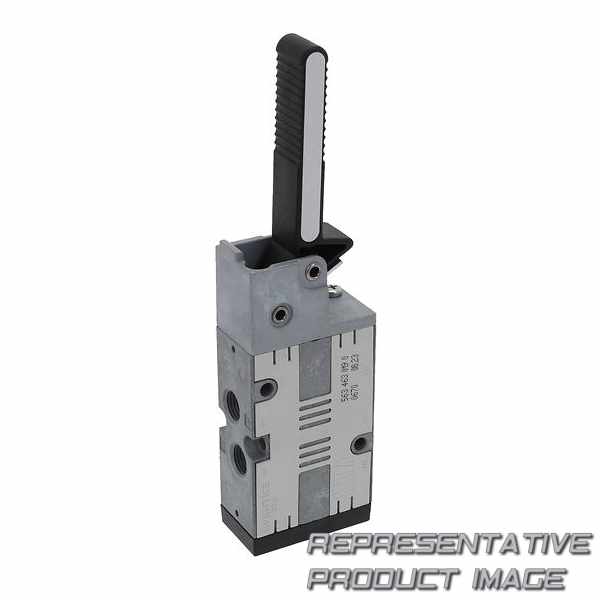

| actuating element | hand lever, with detent, without detent | ||
| actuating control | single solenoid | ||
| valve type | spool valve, positive overlapping | ||
| activation | mechanical |
| Medium | compressed air | ||
| min. medium temperature | -40 °c | ||
| min. ambient temperature | -40 °c | ||
| temperature resistance | -30 °c cold-resistant | ||
| working pressure max | 10 bar | ||
| nominal flow qn | 1200 l/min | ||
| compressed air connection output | g 1/4 | ||
| compressed air connection type | internal thread | ||
| Dichtprinzip | soft seal | ||
| plate connection | pipe connection | ||

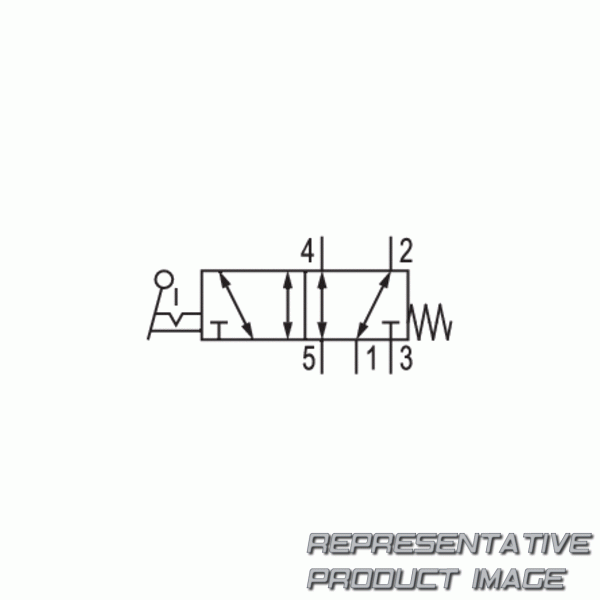

| switching principle | 5/2, with spring return | ||
| frame size | cd07 |
