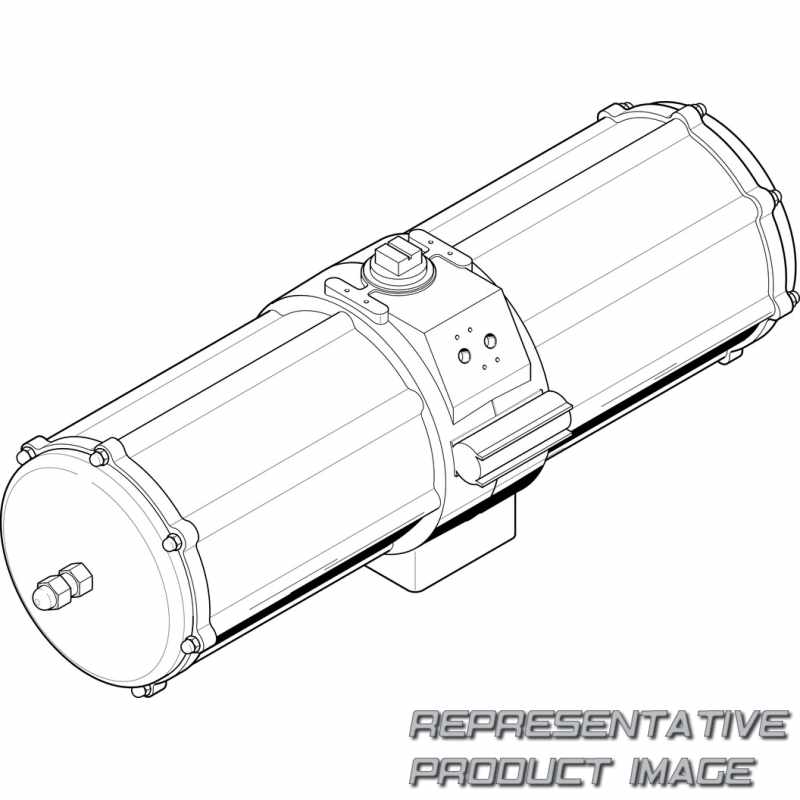

FESTO 549694 halbrotierender Antrieb

Name: 549694 FESTO
Brand: FESTO
SKU: 735648-de-eur
Price: 10201.53 EUR
Availability: InStock

DAPS-2880-090-RS2-F16

10.201,53 €

verfügbar mit 3 bis 4 Wochen Lieferzeit nach United States

Technische Daten

Baureihe (DAPS)	Semi-rotary drive
Size of valve actuator (2880)	2.880
Schwenkwinkel (090)	90
Closing direction (R)	Closes to the right
Funktion (S)	Single-acting, pushing
Spring force (2)	For connecting pressure of 3.5 bar

Werkstoffnummer Welle		1,43
Werkstoff Schrauben		High-alloy steel
Werkstoff Dichtungen		FPM NBR PUR
Werkstoff-Hinweis		RoHS-compliant
Shaft connection		T46
Air consumption at 0.6 MPa (6 bar, 87 psi) per cycle 0°-nominal swivel angle-0°		147 l
Spring return torque at 90° swivel angle		1.800 Nm
Spring return torque at 0° swivel angle		1.200 Nm
Torque at nominal operating pressure and 90° swivel angle		3.000 Nm
Torque at nominal operating pressure and 0° swivel angle		3.600 Nm
Korrosionsbeständigkeitsklasse KBK		3 - high corrosion stress
Betriebsmedium		Compressed air to ISO 8573-1:2010 [7:4:4]
Ex-Zündschutzart Staub		Ex h IIIC T85°C...T200°C Db X
ATEX-Kategorie Staub		II 2D
Explosionsschutz		Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)
CE-Zeichen (siehe Konformitätserklärung)		To EU Explosion Protection Directive (ATEX)
Betriebsdruck		3,5 bar ... 8,4 bar
Safety Integrity Level (SIL)		Up to SIL 2 High Demand mode To SIL 2 Low Demand mode
Symbol		00991266
Positionserkennung		Without
Funktionsweise		Single-acting
Dämpfung		No cushioning
Shaft connection depth		49,5 mm
End-position adjustment range at 0°		-5 deg ... 5 deg
Flanschbohrbild		F16

Werkstoff Welle		High-alloy steel
Werkstoff Gehäuse		Wrought aluminium alloy
Werkstoff Deckel		Wrought aluminium alloy
Pneumatischer Anschluss		G3/8
Produktgewicht		117.000 g
Spring strength		2
Spring return torque at 50° swivel angle		900 Nm
Note on torque		The operating torque of the actuator must not be higher than the maximum permissible torque listed in ISO 5211, with reference to the size of the mounting flange and of the coupling.
Torque at nominal operating pressure and 50° swivel angle		1.980 Nm
Umgebungstemperatur		-20 °C ... 80 °C
Hinweis zum Betriebs-/Steuermedium		Lubricated operation possible (in which case lubricated operation will always be required)
Ex-Umgebungstemperatur		-20°C <= Ta <= +60°C
Ex-Zündschutzart Gas		Ex h IIC T6...T3 Gb X
ATEX-Kategorie Gas		II 2G
CE marking (see declaration of conformity)		To UK EX instructions
Nennbetriebsdruck		5,6 bar
Supply pressure for spring strength		3,5 bar
Valve connection conforms to standard		VDI/VDE 3845 (NAMUR)
Closing direction		Closes to the right
Konstruktiver Aufbau		Scotch yoke system
Einbaulage		optional
Fitting connection conforms to standard		ISO 5211
End-position adjustment range at nominal swivel angle		85 deg ... 95 deg
Schwenkwinkel		90 deg
Size of valve actuator		2.880
