| Brand | SNR | ||

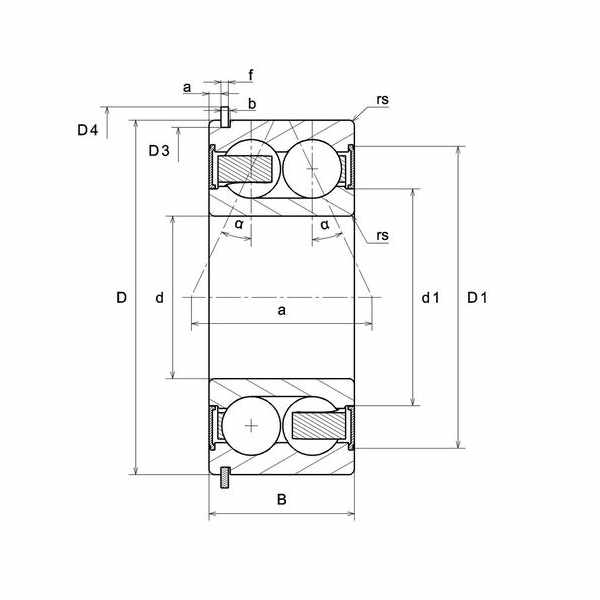

| a - Charge load application point | 26,4 mm | ||
| a min - Min position Groove | 2,31 mm | ||
| rs - Min fillet radius | 1,1 mm | ||
| D3 - Max bottom groove diameter | 49,73 mm | ||
| b max - Max groove width | 1,65 mm | ||
| D4 max - Max outer diameter of assembled stop ring | 57,9 mm | ||
| Snap ring reference | R 52 | ||
| C - Dynamic load | 22,2 kN | ||
| Cu - Fatigue limit load | 0,92 kN | ||
| Nref - Reference thermal speed | 9100 tr/min | ||
| Tmin - Min operating temperature | -20 °C | ||
| BPFO - Characteristic outer ring frequency | 3,145 Hz | ||
| FTF - Characteristic cage frequency | 0,393 Hz | ||

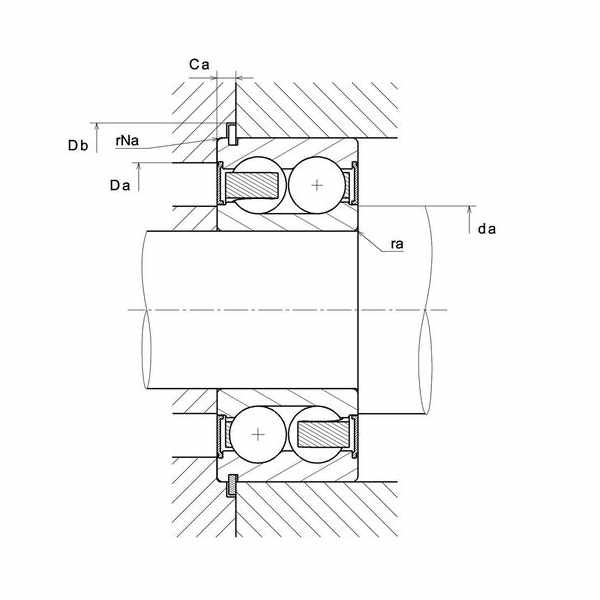

| da min - Min shoulder diameter IR | 26,5 mm | ||
| Da max - Max shoulder diameter OR | 45,5 mm | ||
| Ca max - Max segment position | 3,58 mm | ||
| rNa max - Max fillet radius on segment side | 0,6 mm |
| D1 - Inner diameter outer ring | 45 mm | ||
| α - Contact angle | 25 ° | ||
| a max - Max position groove | 2,46 mm | ||
| rNs - Min fillet radius | 0,6 mm | ||
| b min - Min groove width | 1,35 mm | ||
| r0 max - Max bottom groove radius | 0,4 mm | ||
| f - Stop ring thickness | 1,07 mm | ||
| Radial clearance class | CN | ||
| C0 - Static load | 14,6 kN | ||
| f0 - Coefficient | 13,20 | ||
| Nlim - Mechanical Limit Speed | 10000 tr/min | ||
| Tmax - Max operating temperature | 120 °C | ||
| BPFI - Characteristic inner ring frequency | 4,855 Hz | ||
| BSF - Characteristic rolling element frequency | 4,044 Hz | ||
| da max - Max shoulder diameter IR | 29,2 mm | ||
| Ca min - Mini segment position | 3,33 mm | ||
| ra max - Max shaft & housing fillet radius | 1 mm | ||
| Db min - Min stop ring position diameter | 58,6 mm |
