| Funktion | holding and braking: non-adjustable spring, release: compressed air | ||
| piston Ø | 125 mm | ||
| suitable piston rod Ø | 32 mm | ||
| compressed air connection | g 1/4 | ||
| release pressure min. | 4 bar | ||
| min. medium temperature | -25 °c | ||
| Medium | compressed air | ||
| min. ambient temperature | -25 °c | ||
| oil content of compressed air min. | 0 mg/m³ | ||
| braking energy per braking cycle related to b10d, eb10d | 47 j | ||
| max. braking energy per hour plu6 | 21000 j | ||
| max. moving mass mmax, external | 1223 kg |

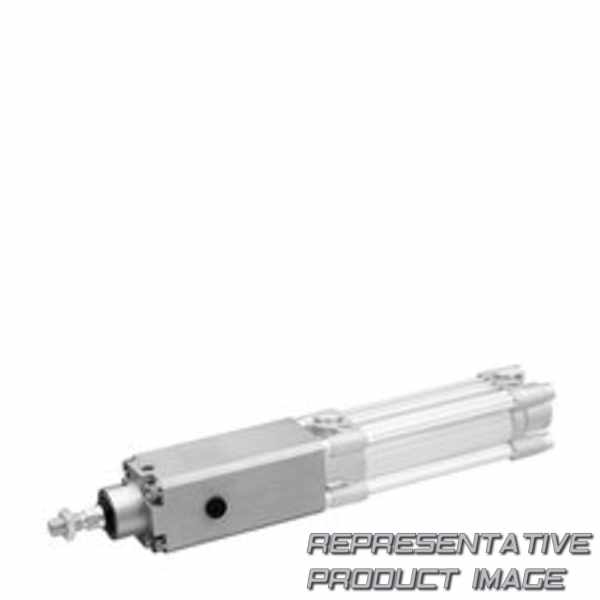

| Typ | clamping jaw lock | ||
| Kolben-Ø | 125 mm | ||
| Piston rod extension | 220 mm | ||
| max. piston speed v max. | 1 m/s | ||
| release pressure max. | 10 bar | ||
| max. medium temperature | 80 °c | ||
| max. particle size | 5 µm | ||
| max. ambient temperature | 80 °c | ||
| required flow rate qn | 1200 l/min | ||
| max. braking energy per braking cycle elu6 | 140 j | ||
| max. total braking energy etotal | 93 mj | ||
| max. torsional moment of piston rod | 15 nm |
