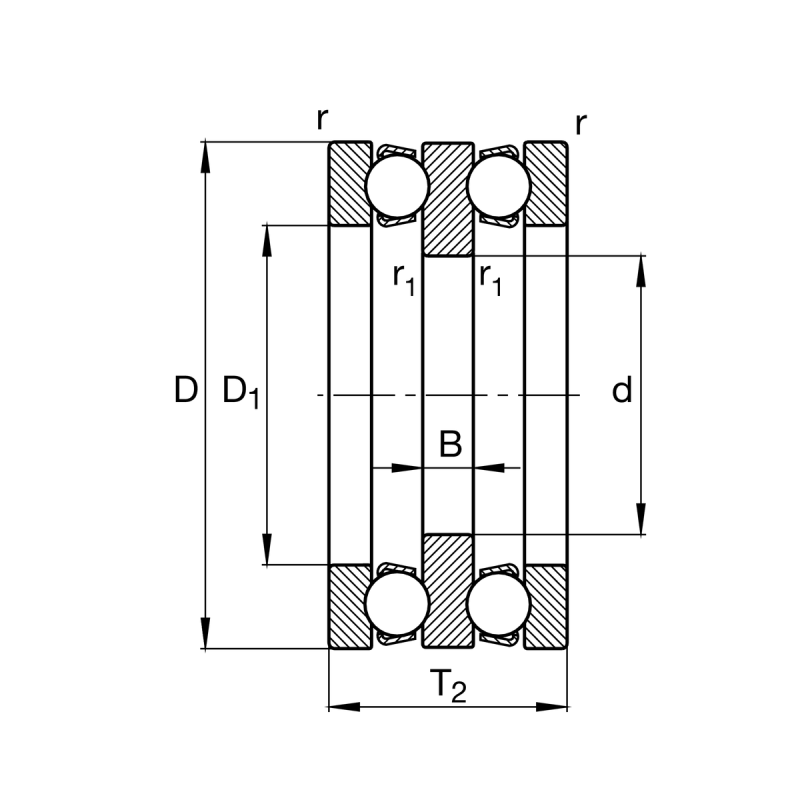

| Inner diameter shaft washer | d | 25 | mm |
| Höhe | T | 29 | mm |
| Basic static load rating, axial | C0a | 46,000 | |
| Limiting speed | nG | 7,300 |
| Outer diameter housing washer | D | 52 | mm |
| Basic dynamic load rating, axial | Ca | 23,900 | |
| Fatigue load limit, axial | Cua | 2,100 | |
| Reference speed | nϑr | 8,200 |

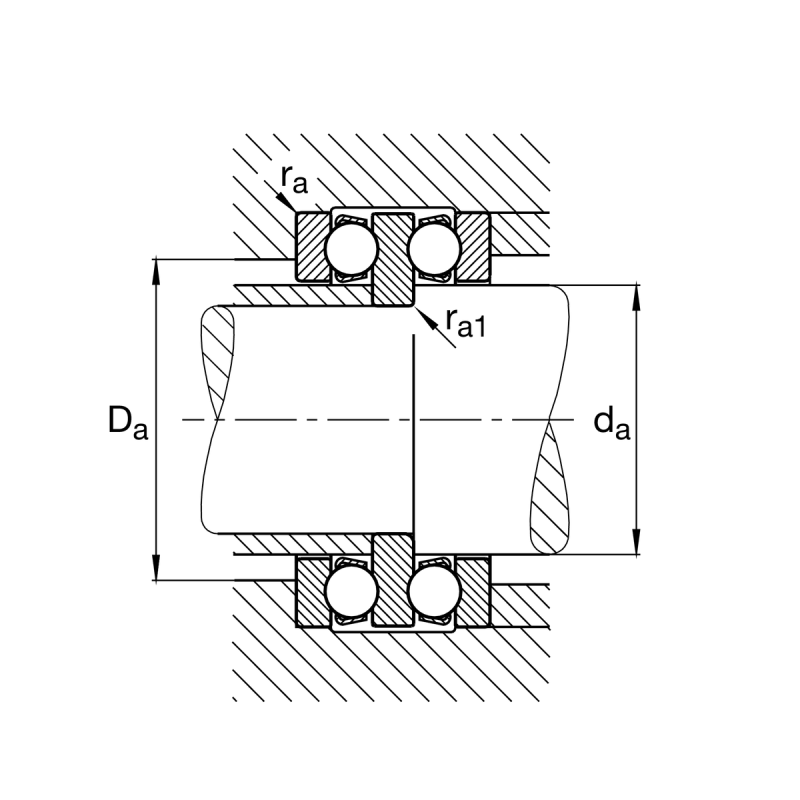

| Maximum diameter shaft shoulder | da max | 30 | mm |
| Maximum filled radius | ra max | 0,30 | mm |
| Maximum diameter of housing shoulder | Da max | 39 | mm |
| Height shaft washer | B | 7 | mm |
| Minimum chamfer dimension | rmin | 0,30 | mm |
| Hersteller | Teilenummer |
|---|---|
| SKC | 3011948 |
| NSK | 52206 (NSK) |
| GPZ Bearings | 38206 |
| Volvo | 6601698 |
| FLT | 52206 |
| KOYO | 52206 |
| Steyr-Daimler-Puch | 633653 |
| Steyr-Daimler-Puch | 000715052206 |
| SKF | 52206 (SKF) |
| Zetor | 965277 |
| SKC | 5948875 |
| SNR | 52206 |
