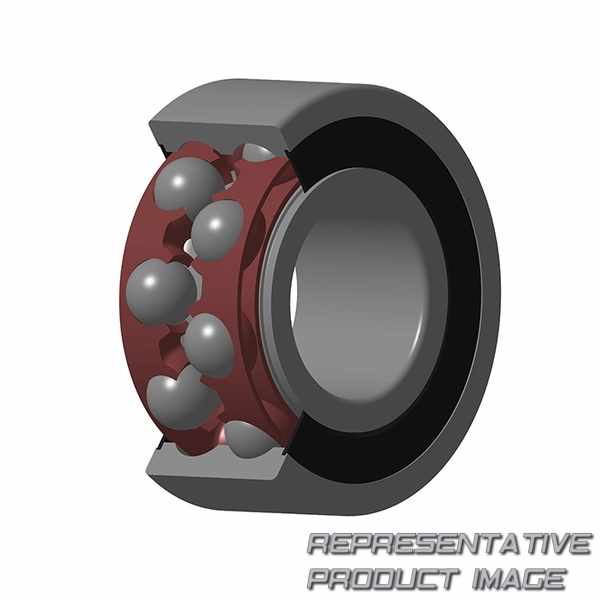

NTN 5208S

Name: 5208S NTN
Brand: NTN
SKU: 596150-de-eur
Price: 45.36 EUR
Availability: InStock

40mm x 80mm x 30,2

45,36 € ~~54,26 €~~ -16%

50+ Stk. mit 1 bis 3 Tagen Lieferzeit nach United States

Technische Daten

Außendurchmesser	80mm
Gewicht	620g

Brand		NTN
α - Contact angle		25 °
Radial clearance class		CN
C0 - Static load		33,5 kN
Nlim - Oil lubrication limit speed		7100 tr/min
Tmin - Min operating temperature		-40 °C
BPFO - Characteristic outer ring frequency		3,691 Hz
FTF - Characteristic cage frequency		0,41 Hz
da min - Min shoulder diameter IR		47 mm
Da max - Max shoulder diameter OR		73 mm

a - Charge load application point		41,5 mm
rs - Min fillet radius		1,1 mm
C - Dynamic load		44 kN
Cu - Fatigue limit load		2 kN
Nlim - Grease lubrication limit speed		5600 tr/min
Tmax - Max operating temperature		120 °C
BPFI - Characteristic inner ring frequency		5,309 Hz
BSF - Characteristic rolling element frequency		4,876 Hz
da max - Max shoulder diameter IR		0 mm
ra max - Max shaft & housing fillet radius		1 mm
