| Brand | NTN | ||

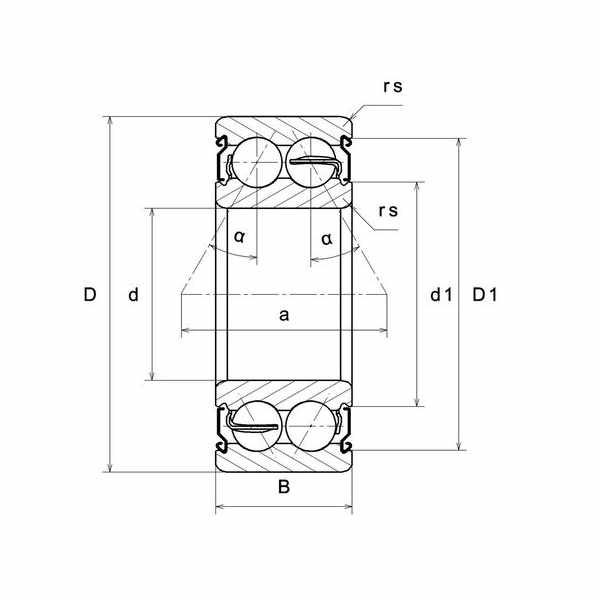

| α - Contact angle | 25 ° | ||
| Radial clearance class | C3 | ||
| C0 - Static load | 10,7 kN | ||
| Nlim - Oil lubrication limit speed | 13000 tr/min | ||
| Tmin - Min operating temperature | -25 °C | ||
| BPFO - Characteristic outer ring frequency | 3,679 Hz | ||
| FTF - Characteristic cage frequency | 0,409 Hz | ||

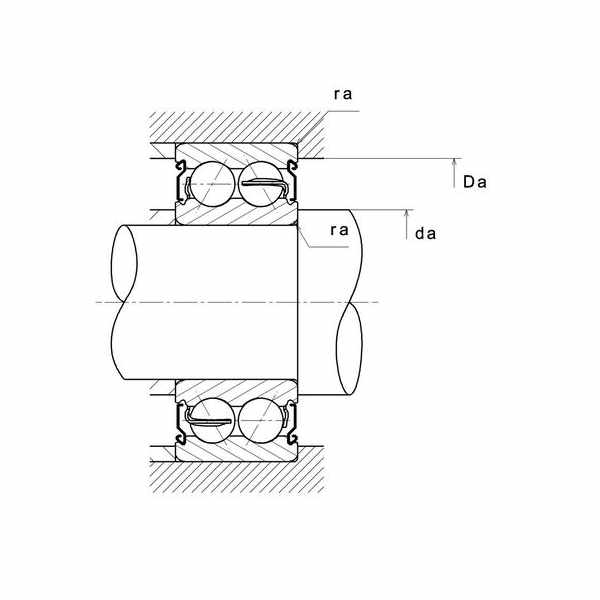

| da min - Min shoulder diameter IR | 26 mm | ||
| Da max - Max shoulder diameter OR | 41 mm |
| a - Charge load application point | 23 mm | ||
| rs - Min fillet radius | 1 mm | ||
| C - Dynamic load | 15,9 kN | ||
| Cu - Fatigue limit load | 0,64 kN | ||
| Nlim - Grease lubrication limit speed | 10000 tr/min | ||
| Tmax - Max operating temperature | 120 °C | ||
| BPFI - Characteristic inner ring frequency | 5,321 Hz | ||
| BSF - Characteristic rolling element frequency | 4,8 Hz | ||
| da max - Max shoulder diameter IR | 0 mm | ||
| ra max - Max shaft & housing fillet radius | 1 mm |
