| material, front cover | polyoxymethylene | ||
| Gehäusematerial | aluminum, anodized | ||
| mounting screw | m2.5 with slot | ||
| oil content of compressed air min. | 0 mg/m³ | ||
| Medium | compressed air | ||
| min. ambient temperature | 5 °c | ||
| control pressure min. | 1.5 bar | ||
| valve type | spool valve | ||
| working pressure max | 8 bar | ||
| Anschlussart | pipe connection | ||
| actuating control | single air pilot | ||

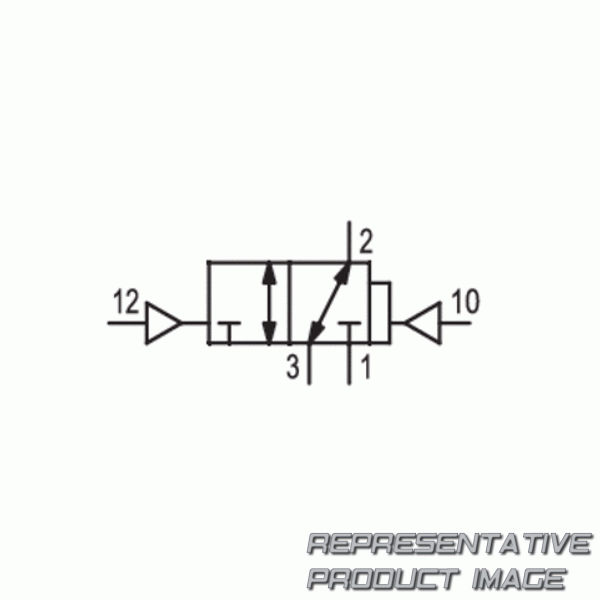

| switching principle | 3/2 | ||
| activation | pneumatically |
| Dichtungsmaterial | nitrile butadiene rubber | ||
| Gewicht | 0.45 kg | ||
| oil content of compressed air max. | 5 mg/m³ | ||
| max. particle size | 5 µm | ||
| max. ambient temperature | 50 °c | ||
| control pressure max. | 8 bar | ||
| pilot | external | ||
| Dichtprinzip | soft seal | ||
| working pressure min. | 1.5 bar | ||
| compressed air connection output | g 1/8 | ||
| return type | with differential piston | ||
| nominal flow qn | 400 l/min |
