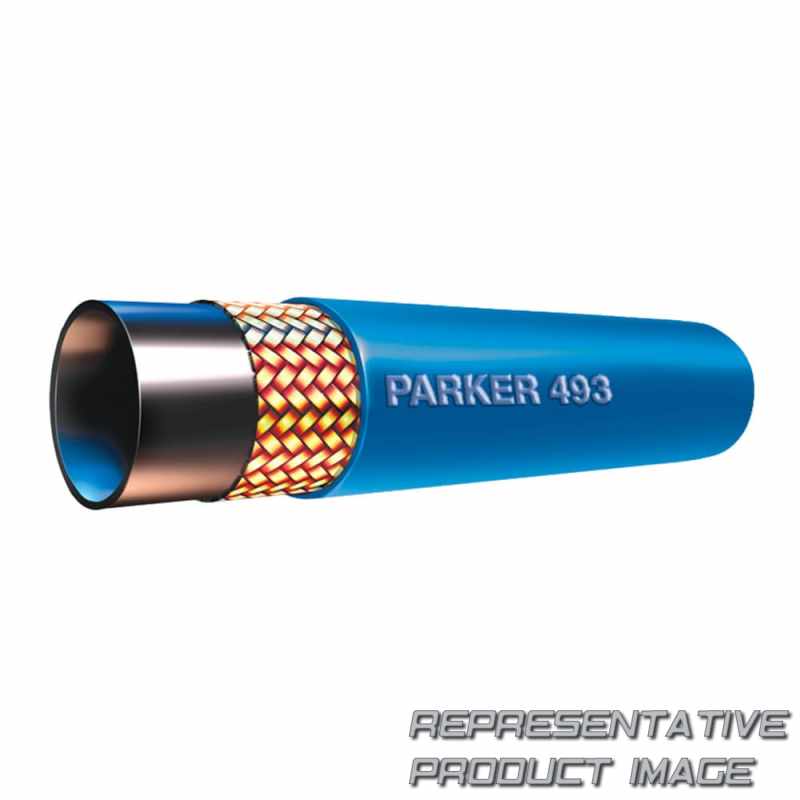

| hose cover type | blue synthetic rubber | ||
| Brand | parker | ||
| industry | food industry, machinery transportation, off-road | ||
| technology | fluid & gas handling | ||
| product style | no-skive compact | ||
| hose inside diameter | 3/8 inch, 9.5 mm | ||
| minimum bend radius | 3.543 inch, 90 mm | ||
| cover color | blue | ||
| Maximale Betriebstemperatur | water max 120 °c, water max 248 °f | ||
| materials of construction | rubber | ||
| hose inner tube material | synthetic rubber | ||
| Gewicht | 0.25 kg/m, 0.17 lb/ft |
| hose i.d. (size) | -6 | ||
| division | polymer hose division europe | ||
| Anwendung | high pressure water cleaners | ||
| Produktfamilie | hydraulic hose, specialty hose | ||
| maximum operating pressure | 20 mpa, 2898 psi, 200 bar | ||
| hose outside diameter | 17.4 mm, 0.685 inch | ||
| design factor | 4:1 | ||
| compatible fitting | 48 series | ||
| specifications met | parker specifications | ||
| cover material | synthetic rubber | ||
| hose reinforcement material | 1 high-tensile steel wire braid | ||
| media | water |
