45M120QVPXG162 Parker Hannifin

PARKER 45M120QVPXG162

Name: 45M120QVPXG162 PARKER
Brand: PARKER
SKU: 548762-de-eur
Price: 802.54 EUR
Availability: InStock

802,54 €

2 Stk. mit 1 bis 3 Tagen Lieferzeit nach United States

Technische Daten

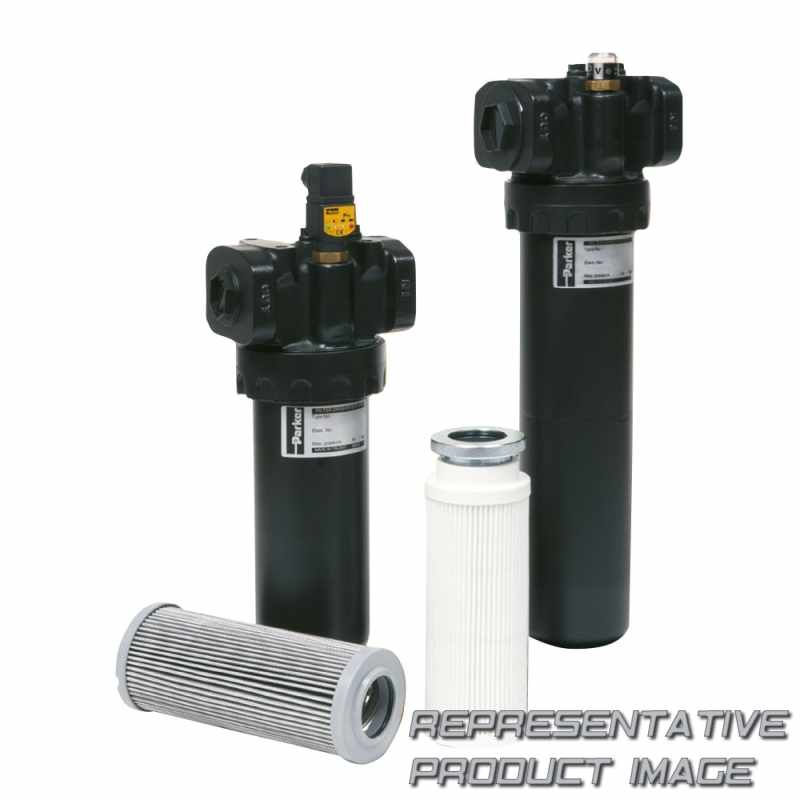

The 45M Series utilizes a cast iron head and steel bowl design and can be specified with Microglass lll or Ecoglass lll filter media. Maximum pressure 40 bar. Maximum flow 260 l/min.

max. Druck	40 bar
Max. Volumenstrom	160 l/min

Dichtung	fluoroelastomer

Technical data

port connection type		g1
indicator pressure setting		no indicator

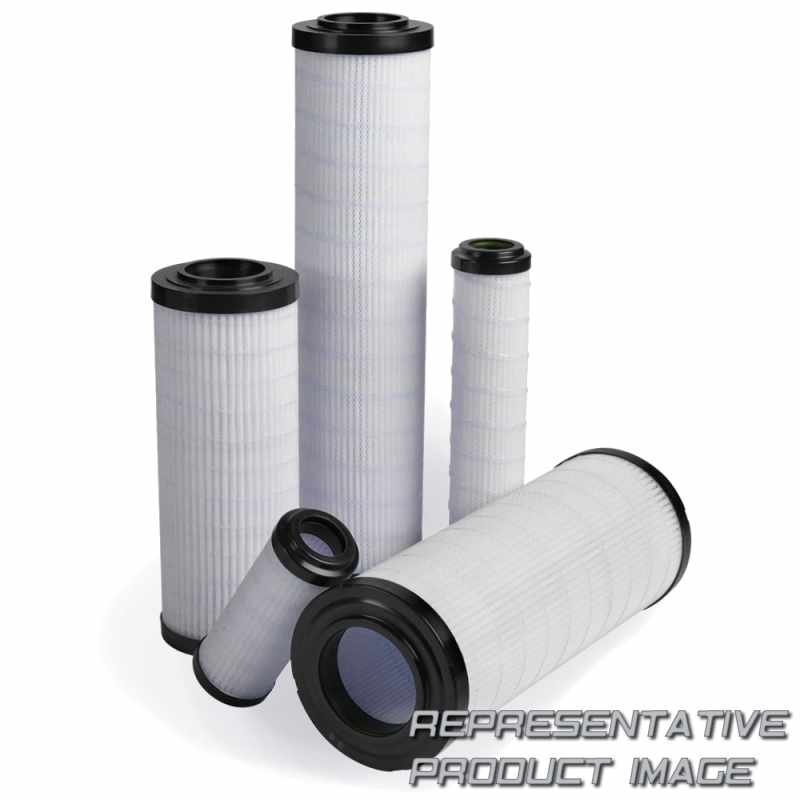

filter element		20q microglass
bypass valve pressure rating		no bypass
filter element type		20q microglass
indicator type		no indicator, port plugged
seal material		fluoroelastomer
Brand		parker
industry		industrial manufacturing equipment, off-road machinery, power generation
technology		hydraulics, filtration
product series		45m series
Betriebsdruck		40 bar
Mounting type		inline
specifications met		degree of filtration determined by multipass test according to iso 16889.

flow capacity		160 l/min
temperature characteristics		-20 / +120°c
flow rate		160 l/min
Anschlussart		g1
micron rating		20 µm
Options		no bypass
Höhe		237 mm
division		hydraulic & industrial process filtration division emea
Anwendung		industrial power units, mobile construction equipment, forestry equipment
Produktfamilie		hydraulic filter
for fluid type		hydraulic oil
Betriebstemperatur		seal material nitrile: -40 to +100 °c, seal material fluoroelastomer: -20 to +120 °c
Gehäusematerial		iron/steel
