| pumps | 3.00 cid (49 cc) | ||
| Schluckvolumen | 049 : 49,2 cm3/r [3.00 in3/r] | ||
| front mounting & input shaft | 05 : 2 bolt b (sae j744-101-2) with 13 tooth 16/32 spline (ansi b92.1-1996 mod.), shaft extension 41,1 [1.62] | ||
| drain port size & location | 1 : 1.0625-12 unf-2b o-ring port - top | ||
| controller type | aa : pressure and flow compensator with .4375-20 sae o-ring load sense port left side | ||
| flow compensator setting | 14 : 12,41-15,17 bar [180-220 lbf/in2] | ||
| control special feature | 00 : no control special features | ||
| auxiliary (rear) mount & output shaft | 00 : no auxiliary mounting features | ||
| pump special features | 00 : no pump special features | ||
| identification / packaging | 00 : mark danfoss product number and full model code on label / individual box packaging |

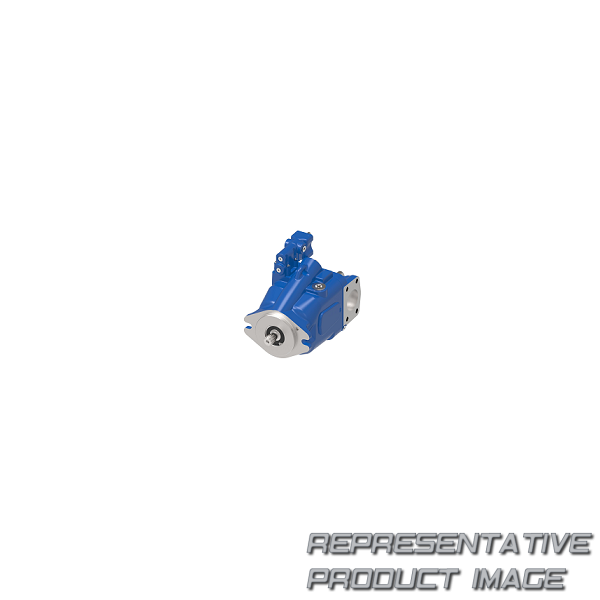

| code title | adu : pressure compensated/pressure flow compensated open circuit piston pump | ||
| input shaft rotation | r : right-hand rotation (cw) right side suction port, left side pressure port | ||
| main ports size & location | aa : rear ports; suction - 2.00 sae j518 4-bolt split flange port standard pressure series (code 61); pressure - 1.00 sae j518 4-bolt split flange port standard pressure series (code 61) | ||
| diagnostic pressure ports | 0 : no diagnostic pressure ports | ||
| pressure compensator setting | 43 : 275,8-282,7 bar [4000-4100 lbf/in2] | ||
| torque control setting | 00 : no torque control or secondary compensator | ||
| maximum displacement option | 01 : standard displacement (as given in code title) | ||
| Wellendichtung | 1 : standard polyacrylate shaft seal | ||
| paint | cd : blue primer per spec 209-13cd | ||
| design code | c : third design |
