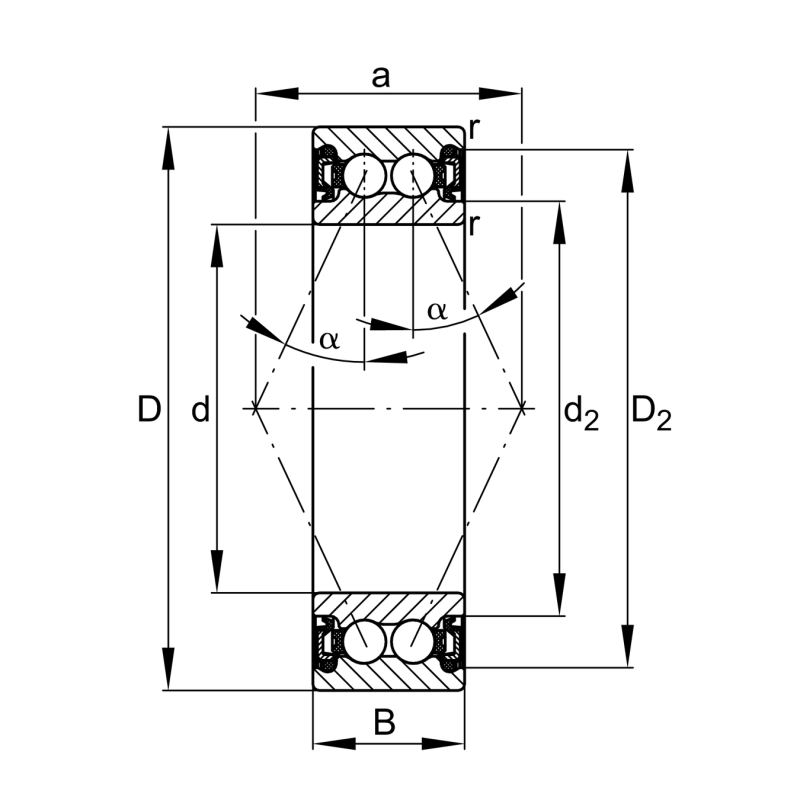

| Bore diameter | d | 50 | mm |
| Breite | B | 12 | mm |
| Basic static load rating, radial | C0r | 10,200 | |
| Limiting speed | nG | 8,100 |
| Außen-Ø | D | 65 | mm |
| Basic dynamic load rating, radial | Cr | 8,500 | |
| Fatigue load limit, radial | Cur | 590 | N |
| Reference speed | nϑr | 5,400 |

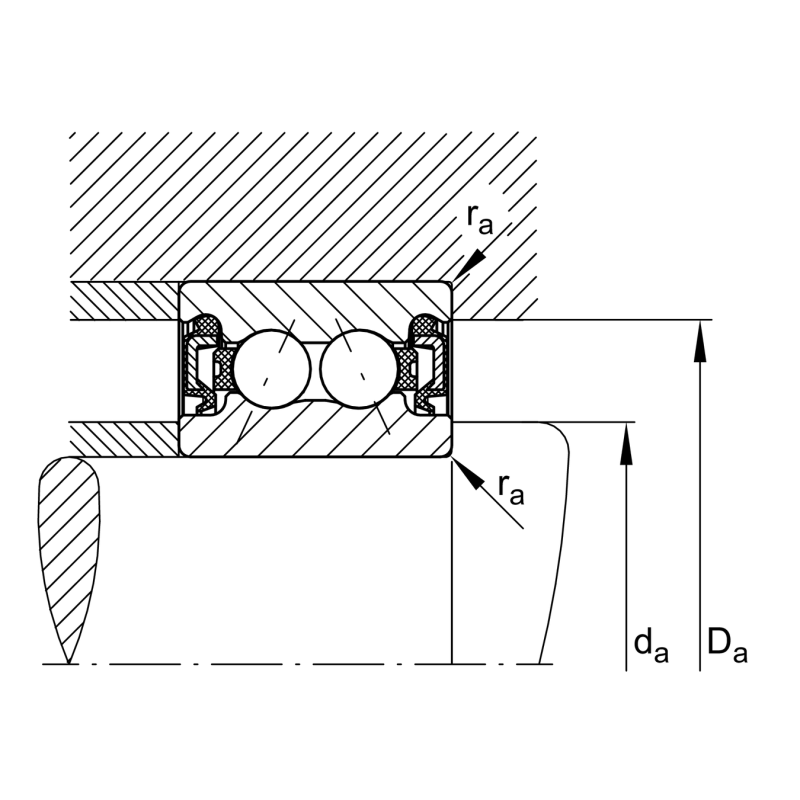

| Minimum diameter shaft shoulder | da min | 52 | mm |
| Maximum fillet radius | ra max | 0,30 | mm |
| Maximum diameter of housing shoulder | Da max | 63 | mm |
| Minimum chamfer dimension | rmin | 0,30 | mm |
| Caliber diamter inner ring | d2 | 55,20 | mm |
| Contact angle | α | 25 | ° |
| Caliber diameter outer ring | D2 | 61,70 | mm |
| Distance between the apexes of the pressure cones | a | 31 | mm |
