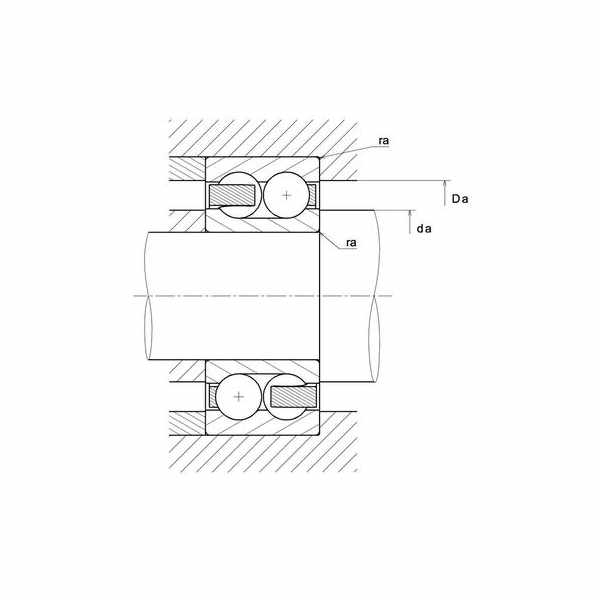

| ra max - Max shaft & housing fillet radius | 1,5 mm | ||
| da min - Min shoulder diameter IR | 53 mm | ||
| FTF - Characteristic cage frequency | 0,4 Hz | ||
| BPFO - Characteristic outer ring frequency | 3,197 Hz | ||
| Tmin - Min operating temperature | -20 °C | ||
| Nref - Reference thermal speed | 5500 tr/min | ||
| Cu - Fatigue limit load | 3,15 kN | ||
| C - Dynamic load | 66,2 kN | ||

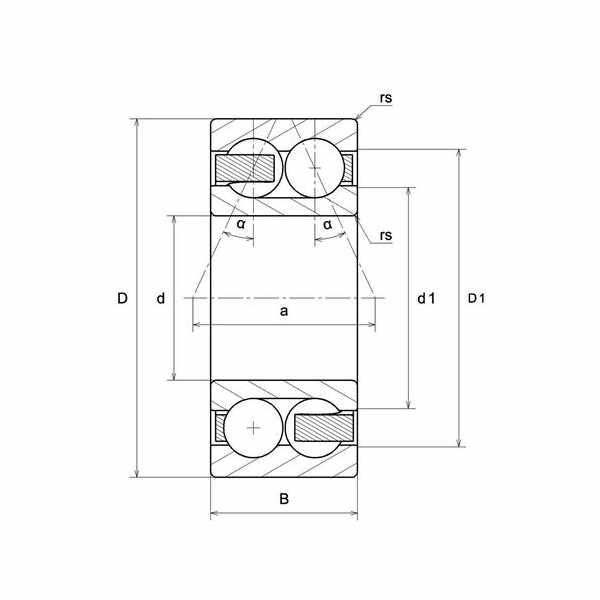

| rs - Min fillet radius | 1,5 mm | ||
| a - Charge load application point | 50,1 mm | ||
| Brand | SNR |
| Da max - Max shoulder diameter OR | 92 mm | ||
| BSF - Characteristic rolling element frequency | 4,335 Hz | ||
| BPFI - Characteristic inner ring frequency | 4,803 Hz | ||
| Tmax - Max operating temperature | 120 °C | ||
| Nlim - Mechanical Limit Speed | 6600 tr/min | ||
| f0 - Coefficient | 13,90 | ||
| C0 - Static load | 51 kN | ||
| Radial clearance class | C3 | ||
| α - Contact angle | 25 ° | ||
| D1 - Inner diameter outer ring | 81,6 mm |
