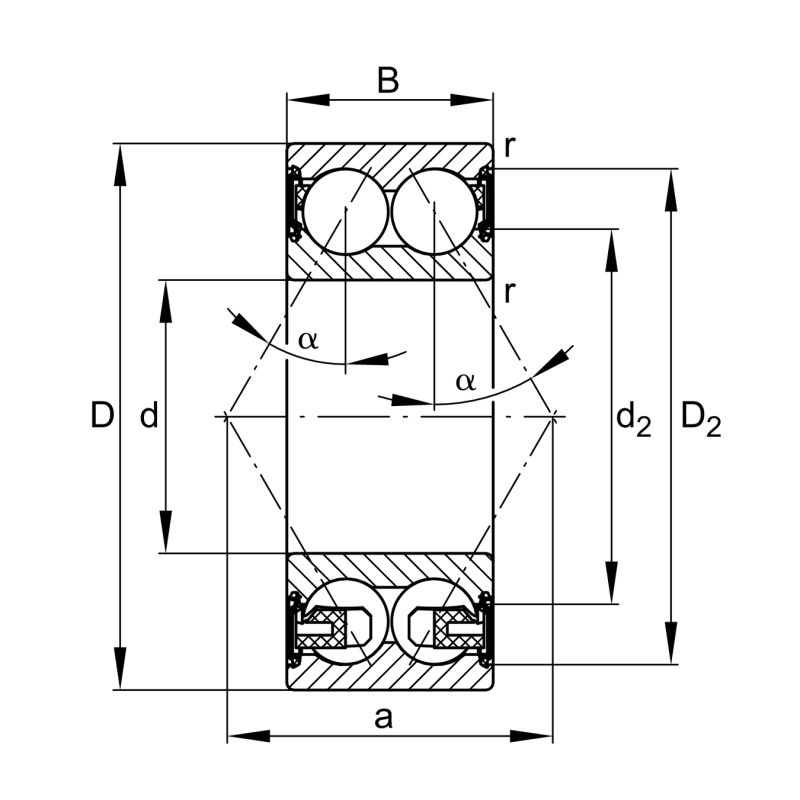

| Außen-Ø | D | 62 | mm |
| Breite | B | 23,80 | mm |
| Basic static load rating, radial | C0r | 22,200 | |
| Limiting speed | nG | 9,000 |
| Bore diameter | d | 30 | mm |
| Basic dynamic load rating, radial | Cr | 31,000 | |
| Fatigue load limit, radial | Cur | 1,540 |
| Minimum diameter shaft shoulder | da min | 35,60 | mm |
| Maximum fillet radius | ra max | 1 | mm |
| Maximum diameter of housing shoulder | Da max | 56,40 | mm |
| Minimum chamfer dimension | rmin | 1 | mm |
| Caliber diamter inner ring | d2 | 40,30 | mm |
| Contact angle | α | 30 | ° |
| Caliber diameter outer ring | D2 | 55,80 | mm |
| Distance between the apexes of the pressure cones | a | 36,40 | mm |
