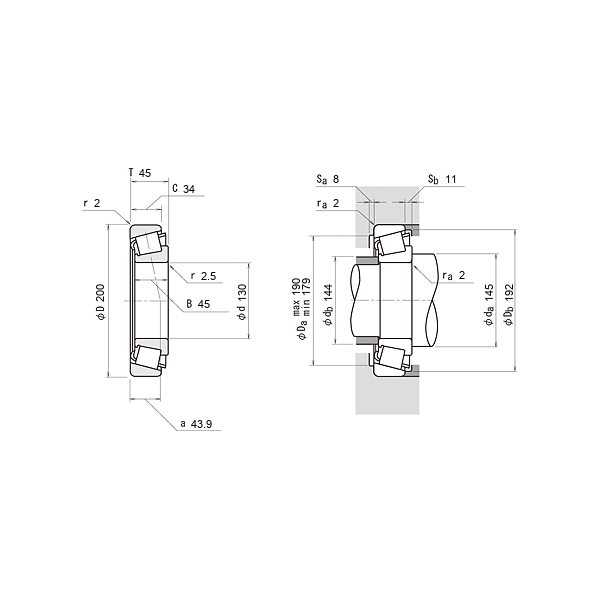

| Bore diameter | d | 130 | mm |
| Total bearing width | T | 45 | mm |
| Width Inner ring | B | 45 | mm |
| Corner radius inner ring | r1,2 | min.2.5 | |
| Distance pressure point | a | 42,90 | mm |
| Außen-Ø | d2 | 200 | mm |
| Inner ring shoulder diameter | d1 | ≈165.4 | |
| Width Outer ring | C | 34 | mm |
| Corner radius outer ring | r3,4 | min.2 |
| Hersteller | Teilenummer |
|---|---|
| FAG | 32026-X-XL (FAG) |
