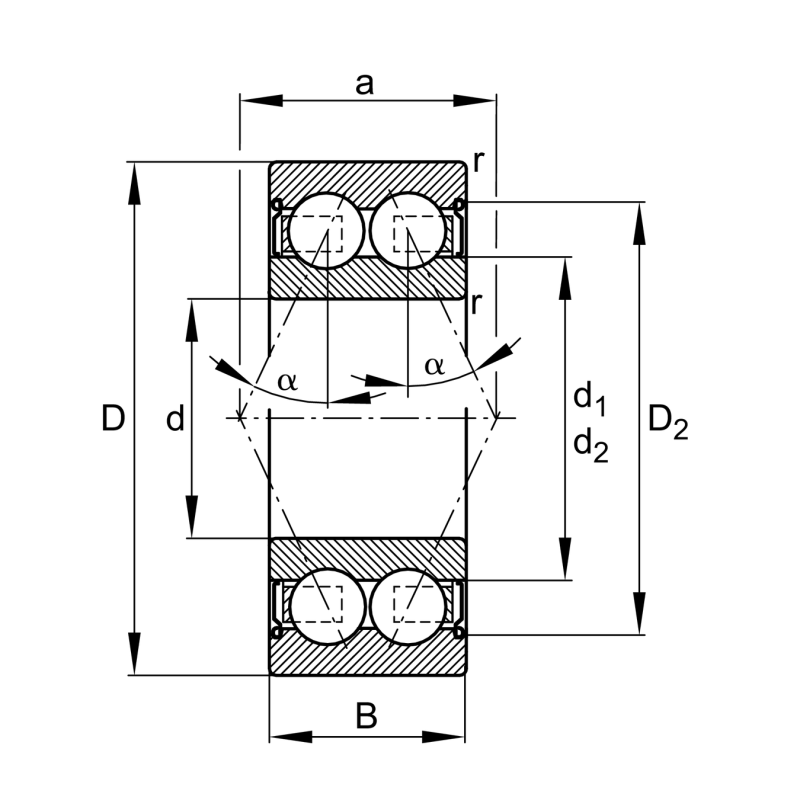

| Bore diameter | d | 12 | mm |
| Breite | B | 15,90 | mm |
| Basic static load rating, radial | C0r | 5,800 | |
| Limiting speed | nG | 18,400 |
| Außen-Ø | D | 32 | mm |
| Basic dynamic load rating, radial | Cr | 10,500 | |
| Fatigue load limit, radial | Cur | 300 | N |
| Reference speed | nϑr | 20,000 |
| Minimum diameter shaft shoulder | da min | 16,20 | mm |
| Maximum fillet radius | ra max | 0,60 | mm |
| Maximum diameter of housing shoulder | Da max | 27,80 | mm |
| Minimum chamfer dimension | rmin | 0,60 | mm |
| Caliber diamter inner ring | d2 | 17,20 | mm |
| Contact angle | α | 25 | ° |
| Caliber diameter outer ring | D2 | 27,80 | mm |
| Distance between the apexes of the pressure cones | a | 16,50 | mm |
| Hersteller | Teilenummer |
|---|---|
| RHP | 3201B-2ZTNH |
| SNR | 5201ZZ (SNR) |
| Marlin-Rockwell Corp. | 5201-SBKFF |
| SKF | 3201-A-2Z TN9 (SKF) |
| SKF | 5201-A-2Z TN9 (SKF) |
| NSK | 3201B-2ZTNG |
| NSK | 3201 B-2ZRTNG (NSK) |
| SKF | 3201-A-2Z TN9-MT33 (SKF) |
| RHP | 3201B-2ZRTNH |
| NTN | 5201AZZ |
| Hyatt | 55501 |
| KOYO | 5201ZZ |
