| Brand | SNR | ||

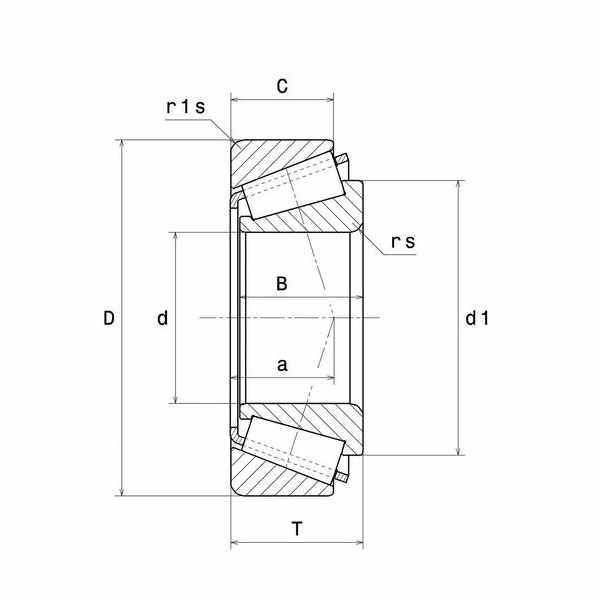

| T - Total width | 13,25 mm | ||
| rs - Min fillet radius | 1 mm | ||
| ISO 355 reference | T2DB017 | ||
| A2 - Rating life coefficient | 1 | ||
| Cu - Fatigue limit load | 2,65 kN | ||
| Y0 - Static axial load coefficient | 0,96 | ||
| Nref - Reference thermal speed | 9700 tr/min | ||
| Tmin - Min operating temperature | -40 °C | ||
| BPFO - Characteristic outer ring frequency | 6,157 Hz | ||
| FTF - Characteristic cage frequency | 0,41 Hz | ||

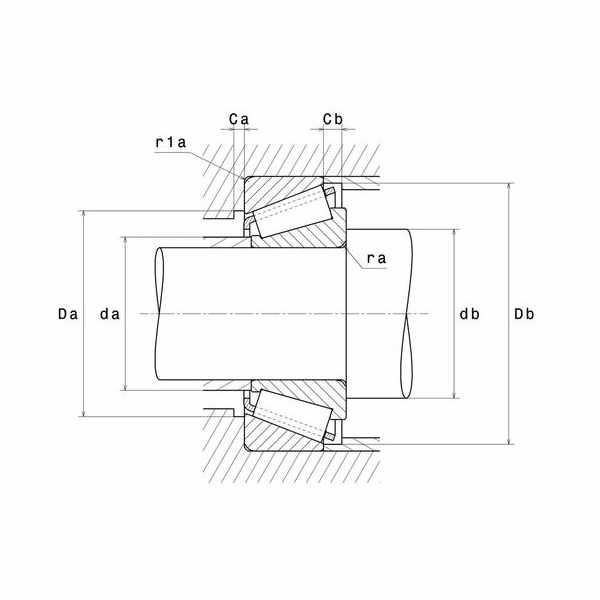

| da max - Max shoulder diameter IR | 23 mm | ||
| Da min - Min shoulder diameter OR | 34 mm | ||
| Db min - Min OR shoulder diameter | 37 mm | ||
| Cb - Min clearance | 2 mm | ||
| r1a - Max fillet radius | 1 mm |
| C - Outer ring width | 11 mm | ||
| a - Charge load application point | 9,9 mm | ||
| r1s - Min fillet radius | 1 mm | ||
| C - Dynamic load | 21,7 kN | ||
| C0 - Static load | 21,9 kN | ||
| e - Coefficient | 0,35 | ||
| Y2 - Upper axial load coefficient | 1,74 | ||
| Nlim - Mechanical Limit Speed | 19000 tr/min | ||
| Tmax - Max operating temperature | 120 °C | ||
| BPFI - Characteristic inner ring frequency | 8,843 Hz | ||
| BSF - Characteristic rolling element frequency | 5,266 Hz | ||
| db min - Min IR shoulder diameter | 23 mm | ||
| Da max - Max shoulder diameter OR | 34 mm | ||
| Ca - Min clearance | 2 mm | ||
| ra max - Max fillet radius | 1 mm |
