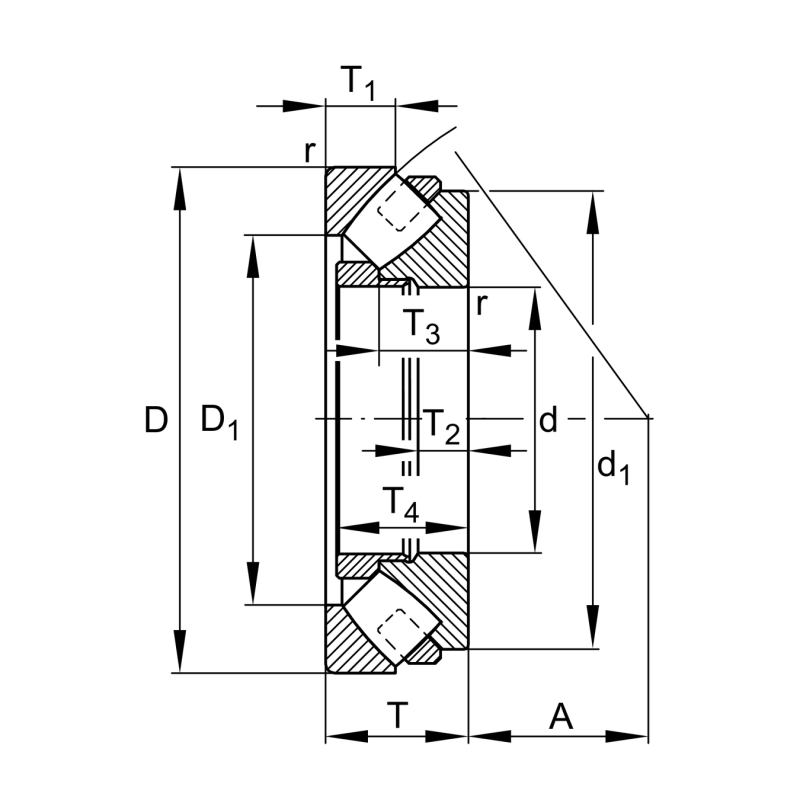

| Bore diameter | d | 850 | mm |
| Section height | T | 354 | mm |
| Basic static load rating, axial | C0a | 110,000,000 | |
| Limiting speed | nG | 400 | 1/min |
| Außen-Ø | D | 1,440 | |
| Basic dynamic load rating, axial | Ca | 24,000,000 | |
| Fatigue load limit, axial | Cua | 8,600,000 | |
| Reference speed | nϑr | 174 | 1/min |

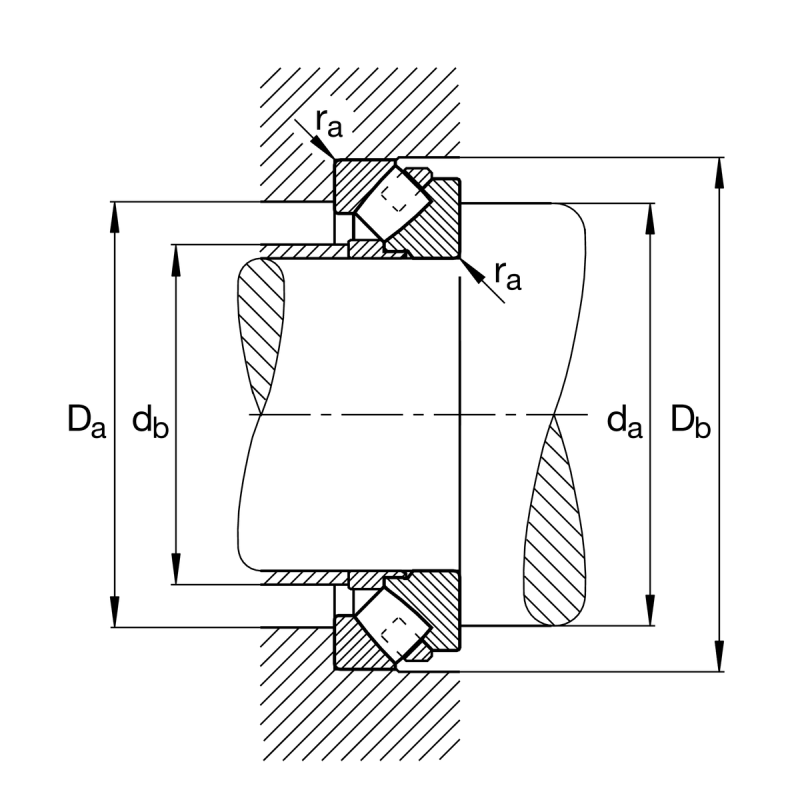

| Minimum diameter shaft shoulder | da min | 1,145 | |
| Maximum distance sleeve | db max | 915 | mm |
| Maximum diameter of housing shoulder | Da max | 1,275 | |
| Maximum recess radius | ra max | 12 | mm |
| Rip diameter shaft washer | d1 | 1,325 | |
| Height of shaft washer | T2 | 142,90 | mm |
| Height of shaft washer, inc. lip ring | T4 | 342 | mm |
| Minimum chamfer dimension | rmin | 15 | mm |
| Height of the shaft washer | T3 | 239 | mm |
| Distance of the center point | A | 490 | mm |
