| Bore diameter | d | 100 | mm |
| Nominal height | H | 42 | mm |
| Shoulder diameter outer ring | D1 | ≈128 | |
| Height shaft washer + cage | B1 | 36,30 | mm |
| Distance from shaft washer end side face to pressure point | s | 58 | mm |
| Außen-Ø | d2 | 170 | mm |
| Outside diameter of shaft washer end side face | d1 | ≈152 | |
| Width shaft washer or length of shaft washer bore diameter that fits on shaft (bearings with a stamped steel cage) | B | 26,20 | mm |
| Height housing washer | C | 20,50 | mm |
| Chamfer dimension shaft washer | r3,4 | min.1.5 |
| Hersteller | Teilenummer |
|---|---|

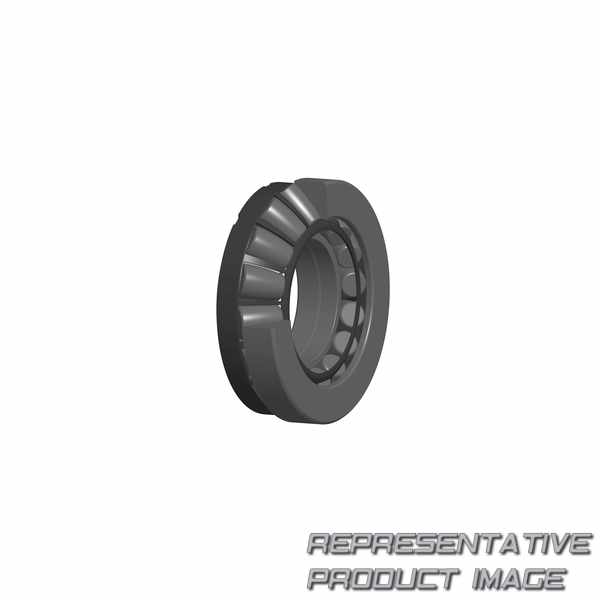

| FAG | 29320-E1 (FAG) |
