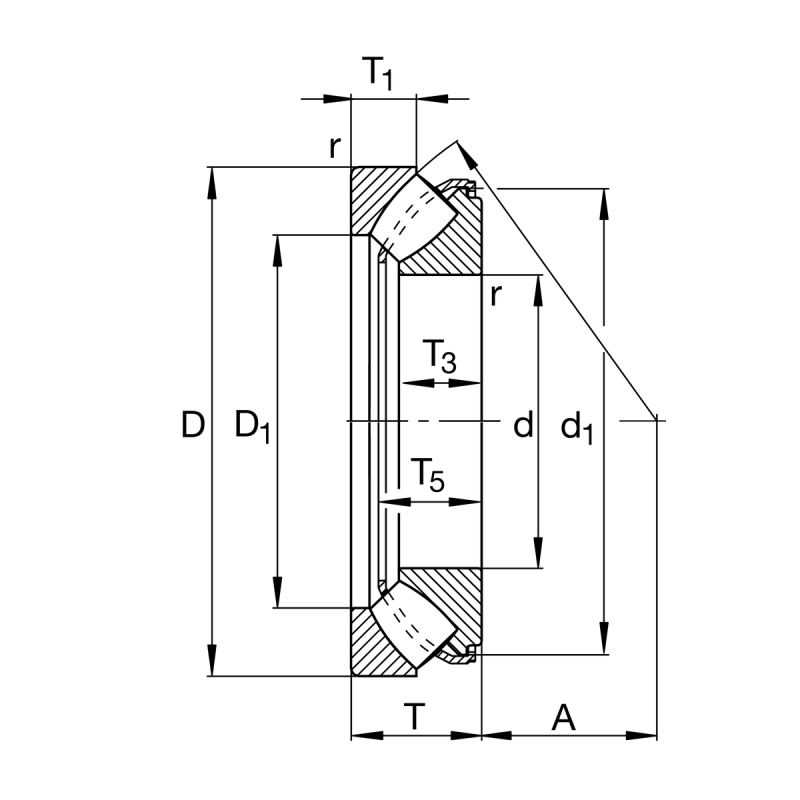

| Bore diameter | d | 85 | mm |
| Höhe | T | 39 | mm |
| Basic static load rating, axial | C0a | 1,110,000 | |
| Limiting speed | nG | 4,850 |
| Außen-Ø | D | 150 | mm |
| Basic dynamic load rating, axial | Ca | 420,000 | |
| Fatigue load limit, axial | Cua | 158,000 | |
| Reference speed | nϑr | 2,260 |

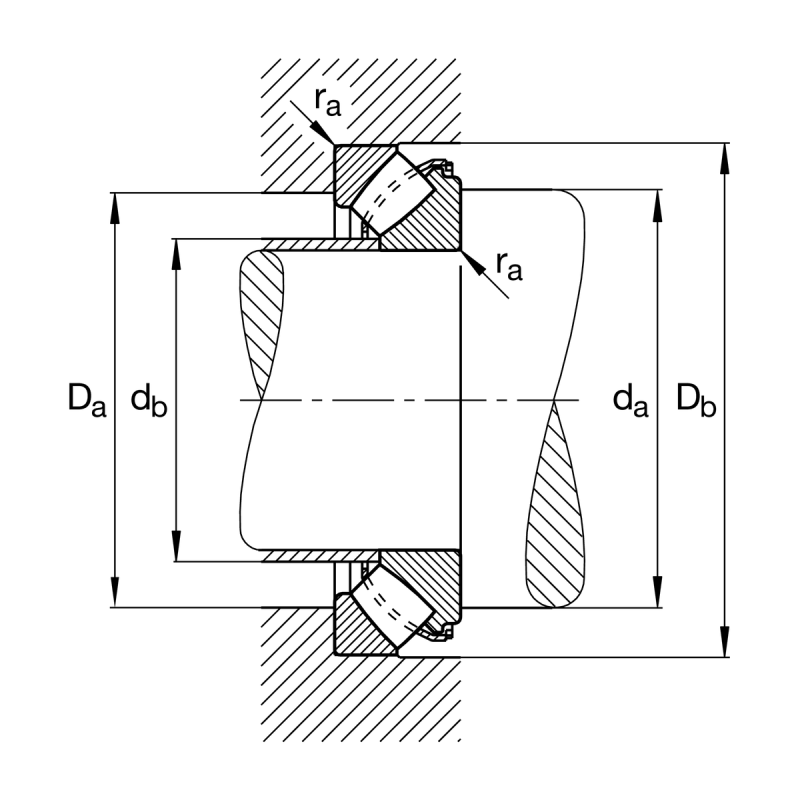

| Minimum diameter shaft shoulder | da min | 120 | mm |

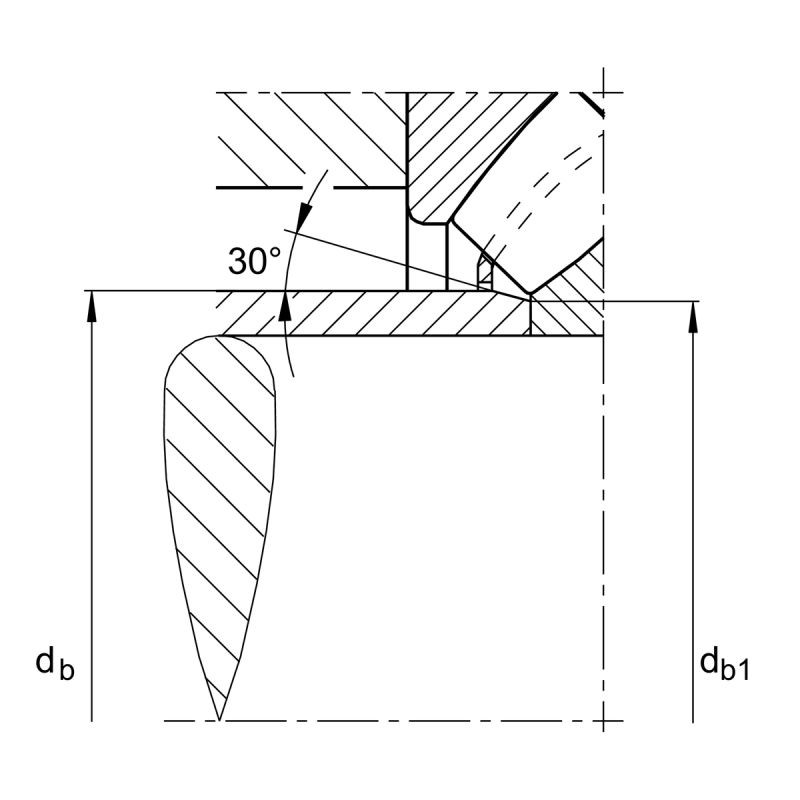

| Maximum distance sleeve | db max | 92 | mm |
| Maximum diameter of housing shoulder | Da max | 129 | mm |
| Maximum recess radius | ra max | 1,50 | mm |
| Rip diameter shaft washer | d1 | 138,50 | mm |
| Height of the shaft washer | T3 | 24,50 | mm |
| Distance of the center point | A | 50 | mm |
| Minimum chamfer dimension | rmin | 1,50 | mm |
| Distance shaft washer - cage | T5 | 34,50 | mm |
