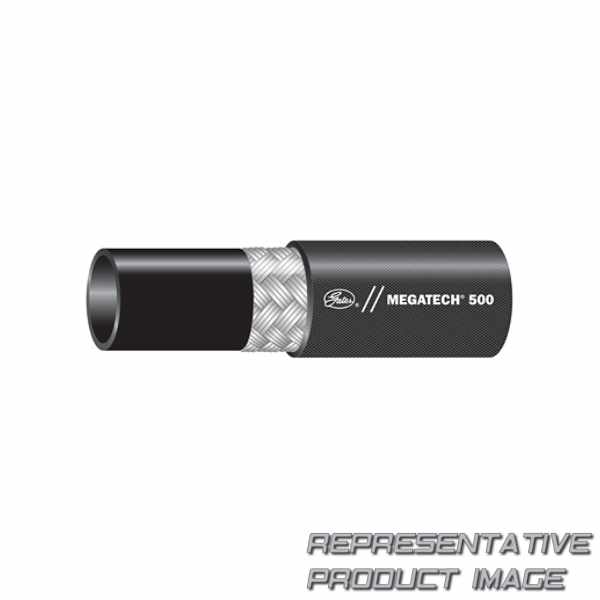

| Part # | 24MEGATECH500 | ||
| Vacuum (In. Hg) | 760 | ||
| Minimum Bend Radius (in) | 15 | ||
| Min. Burst Pressure (psi) | 2.000 | ||
| Hose Outside Diameter (in) | 1,95 | ||
| Inside Diameter (mm) | 38 | ||
| Outside Diameter (in) | 1,95 | ||
| Specifications | Minimum Burst Pressure (Bar): 140 | ||
| Verwendung | Fleet | ||
| Reinforcement | One braid of high-tensile steel wire. | ||
| Construction: Reinforcement | 1WB | ||
| Recommended For | Air brake hose, pressurized hot oil return lines and rotary oil/air compressor lines. Not recommended for gasoline or diesel fuel applications. | ||
| Packaging | A |
| Product # | 4657-00204 | ||
| Continuous Operating Temperature Range | -40°F to +300°F | ||
| Minimum Bend Radius (mm) | 380 | ||
| Hose Inside Diameter (in) | 1,50 | ||
| Inside Diameter (in) | 1.1/2 | ||
| Temperature Range | -40/150 | ||
| Outside Diameter (mm) | 49,50 | ||
| Coupling Recommendation | (See Crimp Data Manual 428-7365 or E-Crimp), GL Couplings (G43) Section M, GlobalSpiral™ Plus Couplings (-24 and -32) (G22) Section E | ||
| Cover | TEXTILE | ||
| Tube | GTS (Gates Technical Spec.) black tube specifically compounded for temperature and chemical resistance (CPE - Type J). See Hose Stock Characteristics. | ||
| Construction: Tube | CPE | ||
| Weight (lbs.) | 1 | ||
| UPC | 072053630053 |
