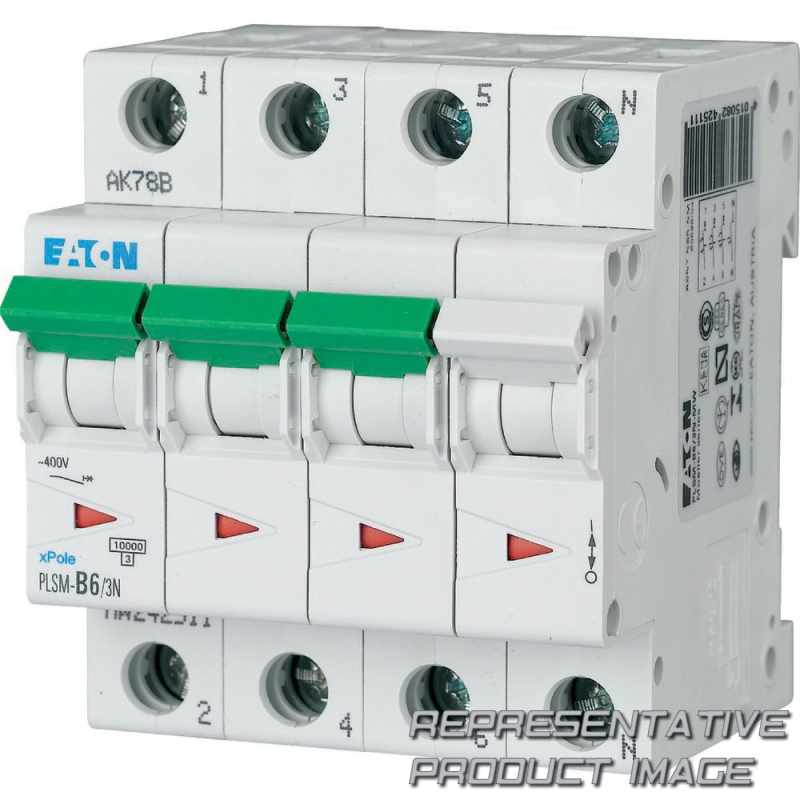

242537 Eaton

EATON 242537

Name: 242537 EATON
Brand: EATON
SKU: 801889-de-eur
Price: 25.12 EUR
Availability: InStock

plsm-c6/3n-mw

25,12 € ~~31,40 €~~ -19%

8 Stk. mit 1 bis 3 Tagen Lieferzeit nach United States

Technische Daten

Breite	70 mm

Gewicht	420g

Technical data

rated insulation voltage (ui)		440 v
10.2.7 inscriptions		meets the product standard's requirements.
10.2.2 corrosion resistance		meets the product standard's requirements.
connectable conductor cross section (multi-wired) - max		25 mm²
rated impulse withstand voltage (uimp)		4 kv
10.7 internal electrical circuits and connections		is the panel builder's responsibility.
Overvoltage category		iii
connectable conductor cross section (solid-core) - max		25 mm²
10.2.3.3 resist. of insul. mat. to abnormal heat/fire by internal elect. effects		meets the product standard's requirements.
width in number of modular spacings		4
heat dissipation capacity		0 w
voltage type		ac
Anwendung		switchgear for residential and commercial applications xpole - switchgear for residential and commercial applications
10.9.4 testing of enclosures made of insulating material		is the panel builder's responsibility.
10.13 mechanical function		the device meets the requirements, provided the information in the instruction leaflet (il) is observed.
tripping characteristic		c
used with		miniature circuit breaker plsm
10.6 incorporation of switching devices and components		does not apply, since the entire switchgear needs to be evaluated.
number of poles		three-pole + n
connectable conductor cross section (solid-core) - min		1 mm²
rated switching capacity (iec/en 60898-1)		10 ka
heat dissipation per pole, current-dependent		0 w
special features		ambient temperature hint: a 1 °c increase results in a 0.5% linear reduction of current carrying capacity
number of poles (total)		4
10.8 connections for external conductors		is the panel builder's responsibility.
frequency rating - max		60 hz
amperage rating		6 a
current limiting class		3
rated short-circuit breaking capacity (en 60898) at 230 v		10 ka
10.11 short-circuit rating		is the panel builder's responsibility. the specifications for the switchgear must be observed.
compliances		rohs conform
product width		70 mm
product length/depth		80 mm

rated operational voltage (ue) - max		400 v
10.2.4 resistance to ultra-violet (uv) radiation		meets the product standard's requirements.
Typ		miniature circuit breaker plsm
10.10 temperature rise		the panel builder is responsible for the temperature rise calculation. eaton will provide heat dissipation data for the devices.
connectable conductor cross section (multi-wired) - min		1 mm²
Verschmutzungsgrad		2
Schutzart		ip20
10.9.2 power-frequency electric strength		is the panel builder's responsibility.
10.2.3.2 verification of resistance of insulating materials to normal heat		meets the product standard's requirements.
release characteristic		c
number of poles (protected)		3
10.3 degree of protection of assemblies		does not apply, since the entire switchgear needs to be evaluated.
static heat dissipation, non-current-dependent		0 w
10.2.6 mechanical impact		does not apply, since the entire switchgear needs to be evaluated.
frequency rating - min		50 hz
equipment heat dissipation, current-dependent		4.6 w
10.5 protection against electric shock		does not apply, since the entire switchgear needs to be evaluated.
ambient operating temperature - min		-25 °c
10.9.3 impulse withstand voltage		is the panel builder's responsibility.
Features		additional equipment possible concurrently switching n-neutral
built-in depth		70.5 mm
ambient operating temperature - max		75 °c
rated short-circuit breaking capacity (iec 60947-2) at 230 v		0 ka
rated short-circuit breaking capacity (iec 60947-2) at 400 v		0 ka
10.2.3.1 verification of thermal stability of enclosures		meets the product standard's requirements.
10.2.5 lifting		does not apply, since the entire switchgear needs to be evaluated.
rated short-circuit breaking capacity (en 60898) at 400 v		10 ka
10.12 electromagnetic compatibility		is the panel builder's responsibility. the specifications for the switchgear must be observed.
10.4 clearances and creepage distances		meets the product standard's requirements.
rated operational current for specified heat dissipation (in)		6 a
Produktgewicht		.42 kg
product height		75 mm
ean		4015082425371

EATON 242537

plsm-c6/3n-mw
