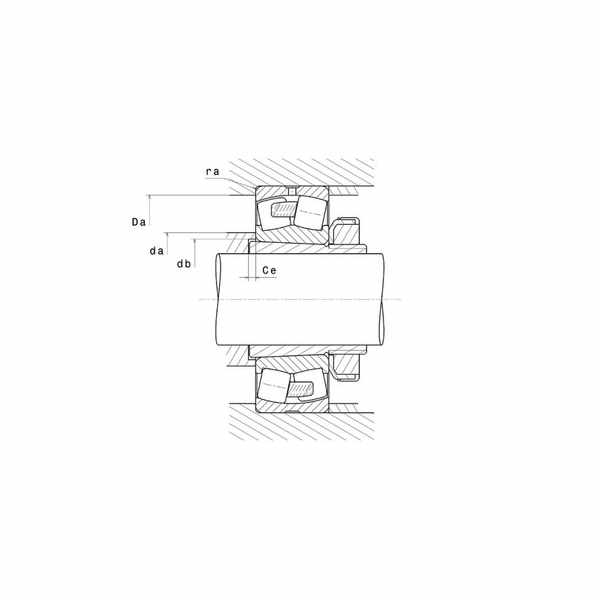

| ra max - Max shaft & housing fillet radius | 2,5 mm | ||
| da min - Min shoulder diameter IR | 252,4 mm | ||
| BSF - Characteristic rolling element frequency | 8,796 Hz | ||
| BPFI - Characteristic inner ring frequency | 13,878 Hz | ||
| Tmax - Max operating temperature | 200 °C | ||
| Nlim - Mechanical Limit Speed | 1700 tr/min | ||
| Y2 - Upper axial load coefficient | 3,45 | ||
| Y0 - Static axial load coefficient | 2,26 | ||
| Cu - Fatigue limit load | 267 kN | ||
| C - Dynamic load | 2020 kN | ||
| Associated sleeve reference | H24048 | ||

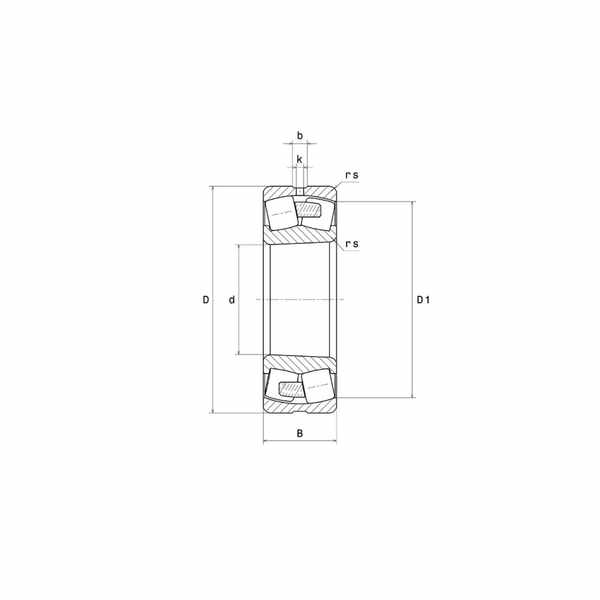

| b - Groove width | 15,31 mm | ||
| rs - Min fillet radius | 3 mm | ||
| Brand | SNR |
| Da max - Max shoulder diameter OR | 347,6 mm | ||
| da max - Max shoulder diameter IR | 0 mm | ||
| FTF - Characteristic cage frequency | 0,445 Hz | ||
| BPFO - Characteristic outer ring frequency | 11,122 Hz | ||
| Tmin - Min operating temperature | -40 °C | ||
| Nref - Reference thermal speed | 1100 tr/min | ||
| Y1 - Lower axial load coefficient | 2,32 | ||
| e - Coefficient | 0,29 | ||
| C0 - Static load | 3050 kN | ||
| Radial clearance class | CN | ||
| k - Hole diameter | 7 mm | ||
| Number of lubrication holes | 3 or 8 | ||
| D1 - Inner diameter outer ring | 323 mm |
