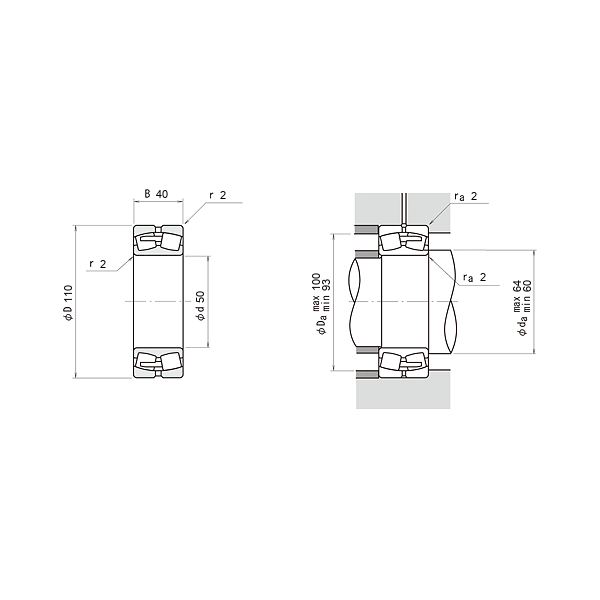

| Bore diameter | d | 50 | mm |
| Breite | B | 40 | mm |
| Shoulder/recess diameter of outer ring | D1 | ≈91.9 | |
| diameter of lubrication hole | S | 3 | mm |
| Außen-Ø | d2 | 110 | mm |
| Shoulder diameter of inner ring | d2 | ≈63.9 | |
| Width of lubrication groove | b | 6 | mm |
| chamfer dimension | rmin | min.2 |
| Hersteller | Teilenummer |
|---|---|
| FAG | 22310-E1-XL-T41A (FAG) |
